    Waveguide to Coaxial Adapter WR28 (BJ320)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    (Waveguide)

    Connector Type

    5o60WR28026540KK

    26.5 ~ 40.0

    0.25

    1.25

    WR28

    (BJ320)

    2.92mm Female

    5o60WR28026540KJ

    26.5 ~ 40.0

    0.25

    1.25

    WR28

    (BJ320)

    2.92mm Male

    5o60WR2802654024K

    26.5 ~ 40.0

    0.25

    1.25

    WR28

    (BJ320)

    2.4mm Female

    5o60WR28026540K24J

    26.5 ~ 40.0

    0.25

    1.25

    WR28

    (BJ320)

    2.4mm Male

    Basic Specifications

    Power

    3W

    Impedance

    50Ω

    Peak Power

    100W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR28(BJ320)

    Storage Temperature

    -55 ~+125℃

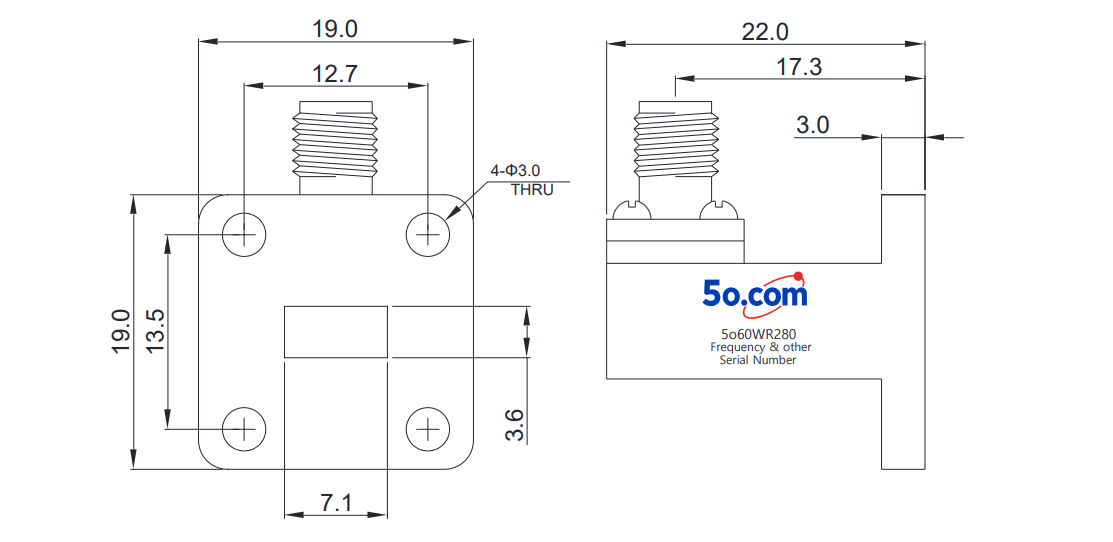

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
