    6 TX Combiner 100 ~ 200MHz

    Application

    ▶Base Stations & Antenna feeds.

    ▶Remote control and Internet of Things devices.

    ▶Military, Space and Commercial applications.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part   Number

    Frequency   Range

    (MHz)

    Insertion   Loss

    (dB)

    Isolation
      Min(dB)

    VSWR
      Max

    5o6461U0108118NK

    108 ~ 118

    10.5dB Max.

    75dB Min.

    1.2:1 Max

    5o6461U0118137NK

    118   ~ 137

    10.5dB Max.

    75dB Min.

    1.2:1 Max

    5o6461U0136174NK

    136 ~ 174

    11.0dB Max.

    75dB Min.

    1.2:1 Max

    5o6461U0150170NK

    150   ~ 170

    10.5dB Max.

    75dB Min.

    1.2:1 Max

    5o6461U0150200NK

    150   ~ 200

    11.0dB Max.

    75dB Min.

    1.2:1 Max

    Basic Specifications

    Number of Channels

    N Female @6xTX N Female @1xANT

    Input Power

    TX-ANT 50W/CH

    Weight

    ~10.5 Kg

    Dimension

    1U (483*300*45mm)

    Appearance color

    Black

    Operating Temperature

    -30~+75℃

    Storage Temperature

    -55~+125℃

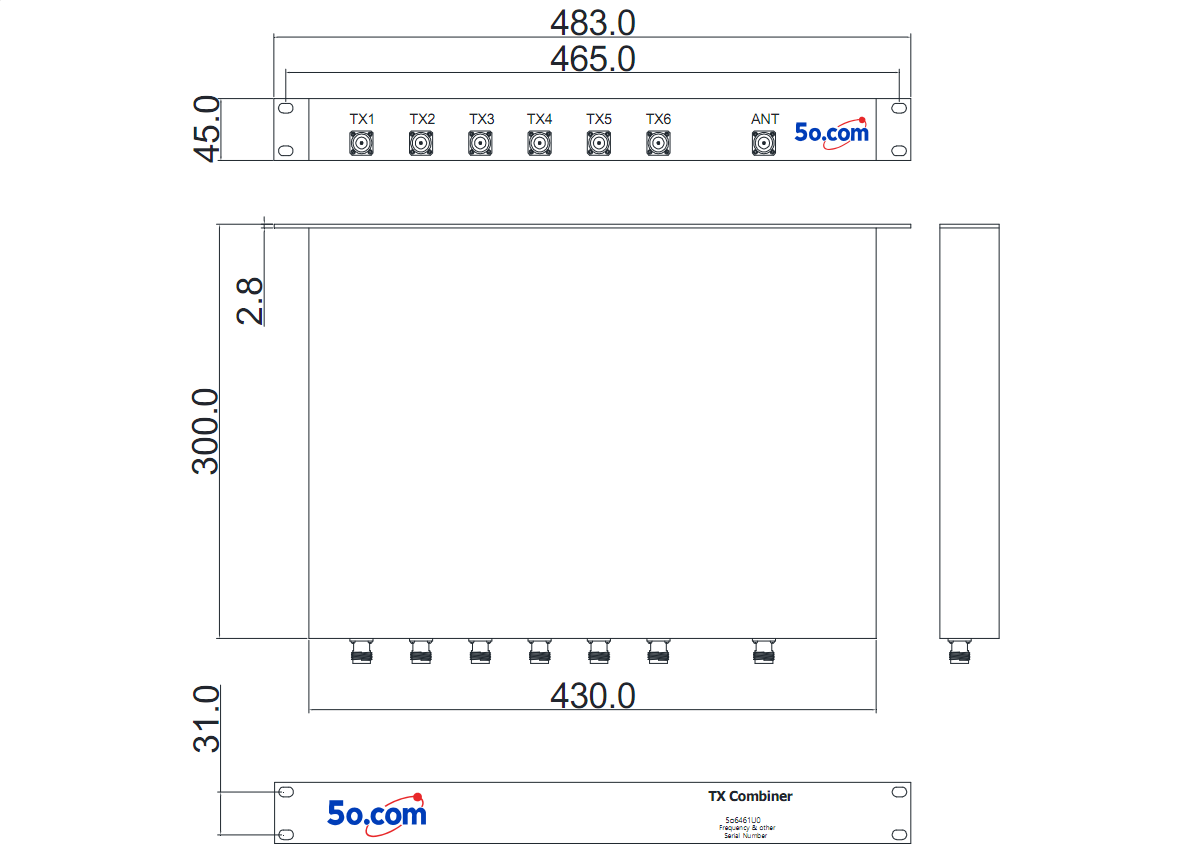

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
