8.2~12.5GHz Waveguide to Coaxial Adapter WR90(BJ100) 5o60WR900

Waveguide to Coaxial Adapter WR90 (BJ100)

Application

▶Testing and measuring equipment.

▶Radar and communication systems.

▶Satellite and wireless communication.

▶Compact wiring scenario.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Connector Type

(Waveguide)

Connector Type

5o60WR90082125NK

8.2 ~ 12.5

0.2

1.15

WR90

(BJ100)

N Female

5o60WR90082125SK

8.2 ~ 12.5

0.2

1.15

WR90

(BJ100)

SMA Female

Basic Specifications

Power

50W

Impedance

50Ω

Peak Power

1000W

Operating Temperature

-55 ~ +85℃

Connector Type

(Waveguide)

WR90(BJ100)

Storage Temperature

-55 ~+125℃

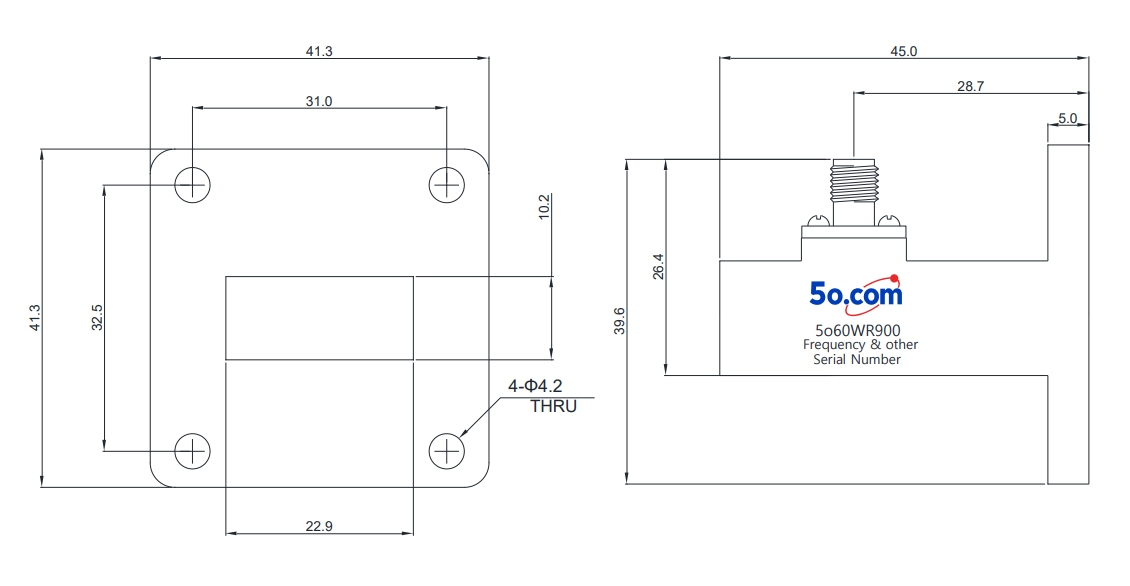

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
