    Waveguide to Coaxial Adapter WR770 (BJ12)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector   Type

    (Waveguide)

    Connector

    Type

    5o60WR77009601450NK

    960~1450

    0.12

    1.2

    WR770

    (BJ12)

    N Female

    5o60WR77009601450SK

    960~1450

    0.12

    1.2

    WR770

    (BJ12)

    SMA Female

    5o60WR77009601450DK

    960~1450

    0.12

    1.25

    WR770

    (BJ12)

    7/16 Female

    Basic Specifications

    Power

    100W

    Impedance

    50Ω

    Peak Power

    3000W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR770(BJ12)

    Storage Temperature

    -55 ~+125℃

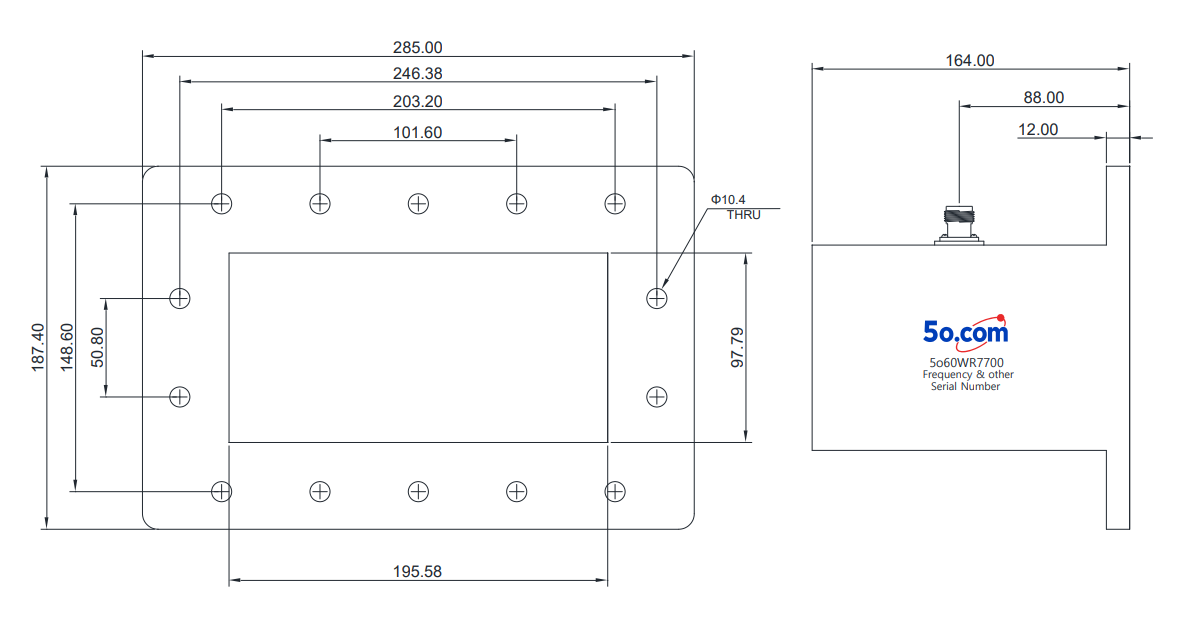

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
