    Waveguide to Coaxial Adapter WR75 (BJ120)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    (Waveguide)

    Connector Type

    5o60WR75098415SK

    9.84 ~ 15.0

    0.2

    1.15

    WR75

    (BJ120)

    SMA Female

    Basic Specifications

    Power

    50W

    Impedance

    50Ω

    Peak Power

    1000W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR75(BJ120)

    Storage Temperature

    -55~+125℃

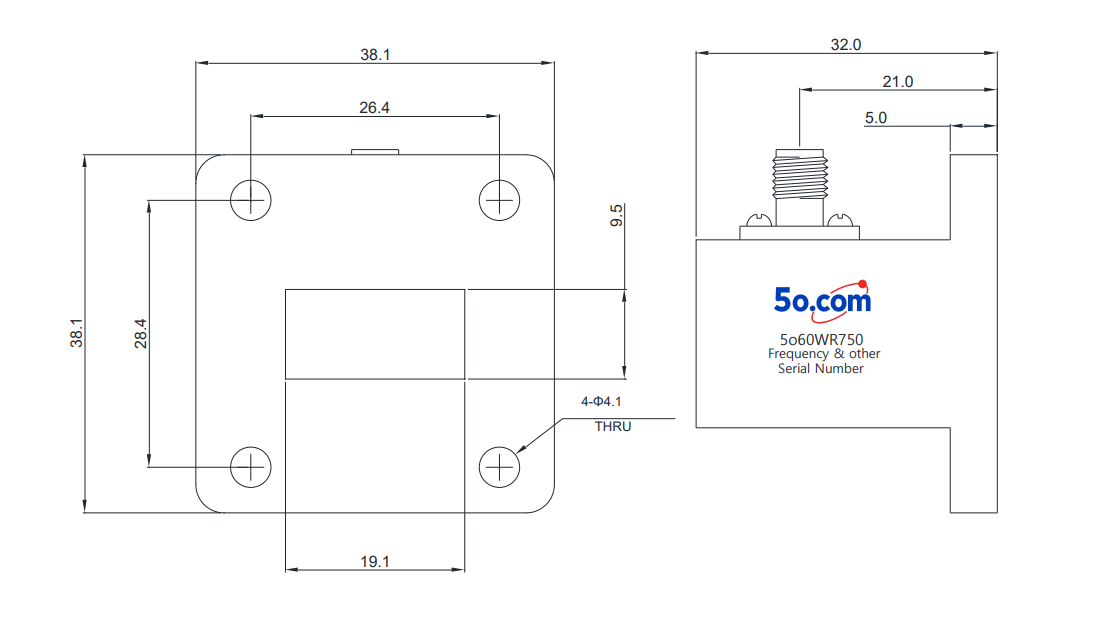

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
