14.5~22.0GHz Waveguide to Coaxial Adapter WR51(BJ180) 5o60WR514

Waveguide to Coaxial Adapter WR51 (BJ180)

Application

▶Testing and measuring equipment.

▶Radar and communication systems.

▶Satellite and wireless communication.

▶Compact wiring scenario.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Connector Type

(Waveguide)

Connector Type

5o60WR51414522SK

14.5 ~ 22.0

0.3

1.3

WR51

(BJ180)

SMA Female

5o60WR51414522KK

14.5 ~ 22.0

0.3

1.3

WR51

(BJ180)

2.92mm Female

Basic Specifications

Power

50W

Impedance

50Ω

Peak Power

100W

Operating Temperature

-55 ~ +85℃

Connector Type

(Waveguide)

WR51(BJ180)

Storage Temperature

-55 ~+125℃

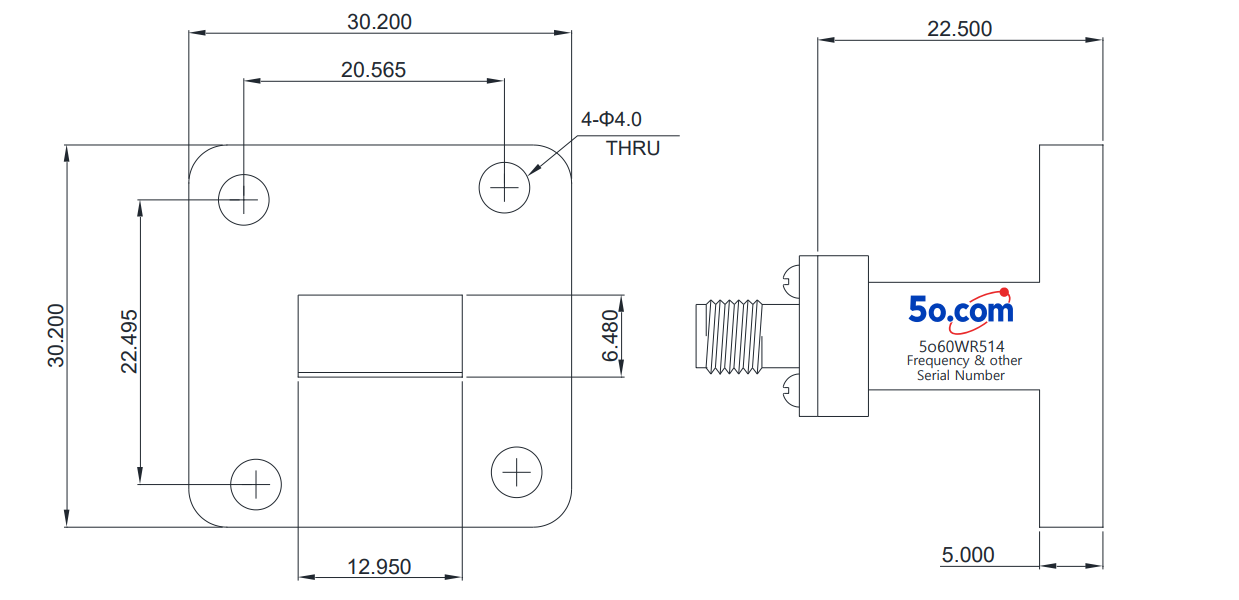

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
