    Waveguide to Coaxial Adapter WR510 (BJ18)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    (Waveguide)

    Connector Type

    5o60WR510014522NK

    1.45 ~ 2.2

    0.2

    1.2

    WR510

    (BJ18)

    N Female

    5o60WR510014522SK

    1.45 ~ 2.2

    0.2

    1.2

    WR510

    (BJ18)

    SMA Female

    5o60WR510014522DK

    1.45 ~ 2.2

    0.2

    1.2

    WR510

    (BJ18)

    7/16 Female

    Basic Specifications

    Power

    100W

    Impedance

    50Ω

    Peak Power

    3000W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR510(BJ18)

    Storage Temperature

    -55 ~+125℃

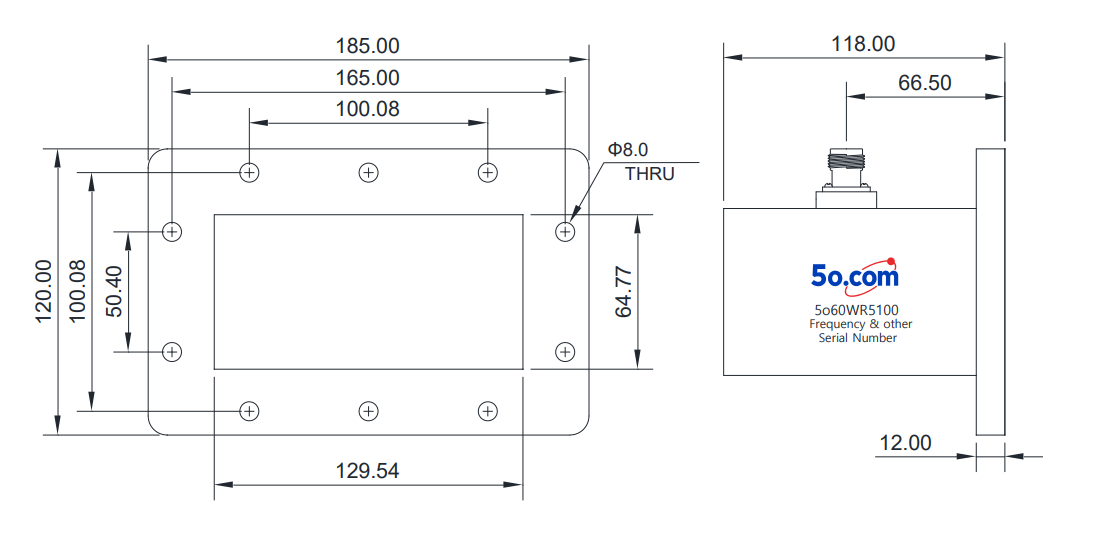

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
