    Waveguide to Coaxial Adapter WR430 (BJ22)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    (Waveguide)

    Connector Type

    5o60WR4300172261NK

    1.72 ~ 2.61

    0.2

    1.2

    WR430

    (BJ22)

    N Female

    5o60WR4300172261SK

    1.72 ~ 2.61

    0.2

    1.2

    WR430

    (BJ22)

    SMA Female

    5o60WR4300172261DK

    1.72 ~ 2.61

    0.2

    1.2

    WR430

    (BJ22)

    7/16 Female

    Basic Specifications

    Power

    100W

    Impedance

    50Ω

    Peak Power

    3000W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR430(BJ22)

    Storage Temperature

    -55 ~+125℃

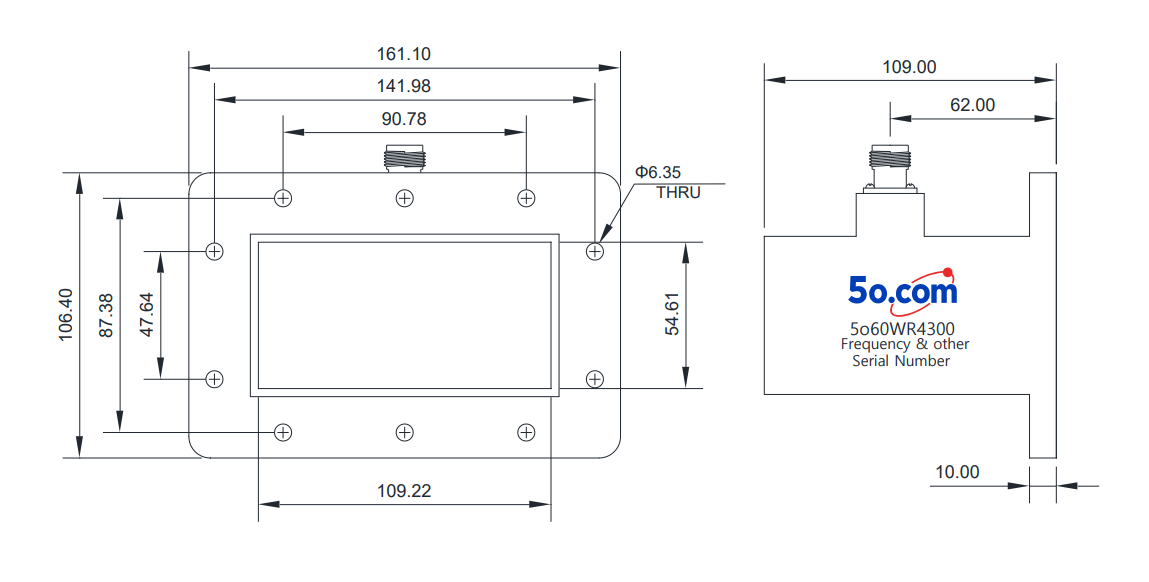

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
