    Waveguide to Coaxial Adapter WR42 (BJ220)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    (Waveguide)

    ConnectorType

    5o60WR42018265SK

    18.0 ~ 26.5

    0.25

    1.2

    WR42

    (BJ220)

    SMA Female

    5o60WR42018265SJ

    18.0 ~ 26.5

    0.25

    1.2

    WR42

    (BJ220)

    SMA Male

    5o60WR42018265KK

    18.0 ~ 26.5

    0.25

    1.2

    WR42

    (BJ220)

    2.92mm Female

    5o60WR42018265KJ

    18.0 ~ 26.5

    0.25

    1.2

    WR42

    (BJ220)

    2.92mm Male

    Basic Specifications

    Power

    3W

    Impedance

    50Ω

    Peak Power

    1000W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR42(BJ220)

    Storage Temperature

    -55 ~+125℃

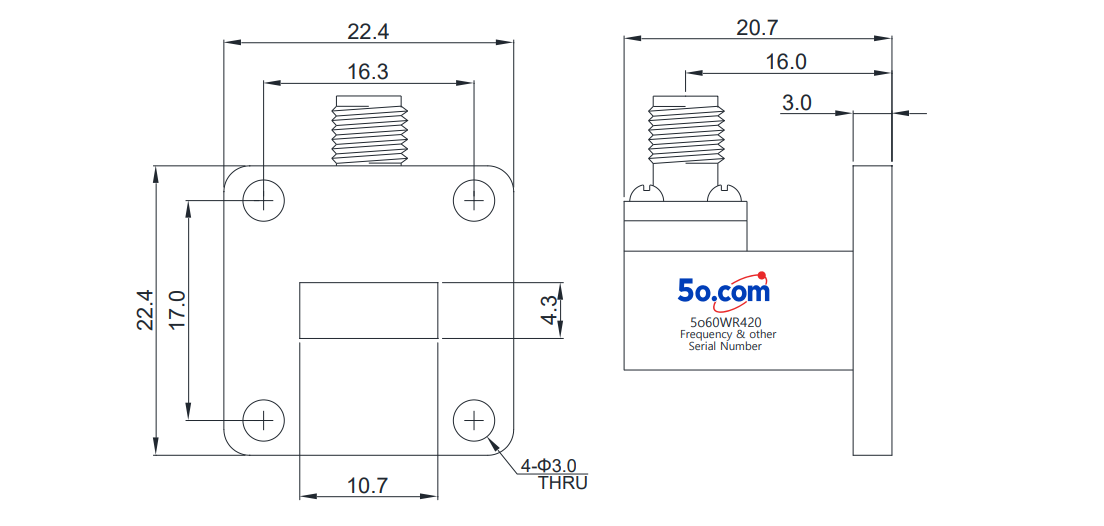

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
