2.6~3.95GHz Waveguide to Coaxial Adapter WR284(BJ32) 5o60WR2845

Waveguide to Coaxial Adapter WR284 (BJ32)

Application

▶Testing and measuring equipment.

▶Radar and communication systems.

▶Satellite and wireless communication.

▶Compact wiring scenario.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Connector Type

(Waveguide)

Connector Type

5o60WR284526395NK

2.6 ~ 3.95

0.2

1.25

WR284 (BJ32)

N Female

5o60WR284526395DK

2.6 ~ 3.95

0.2

1.25

WR284 (BJ32)

7/16 Female

Basic Specifications

Power

300W

Impedance

50Ω

Peak Power

3000W

Operating Temperature

-55 ~ +85℃

Connector Type

(Waveguide)

WR284(BJ32)

Storage Temperature

-55 ~+125℃

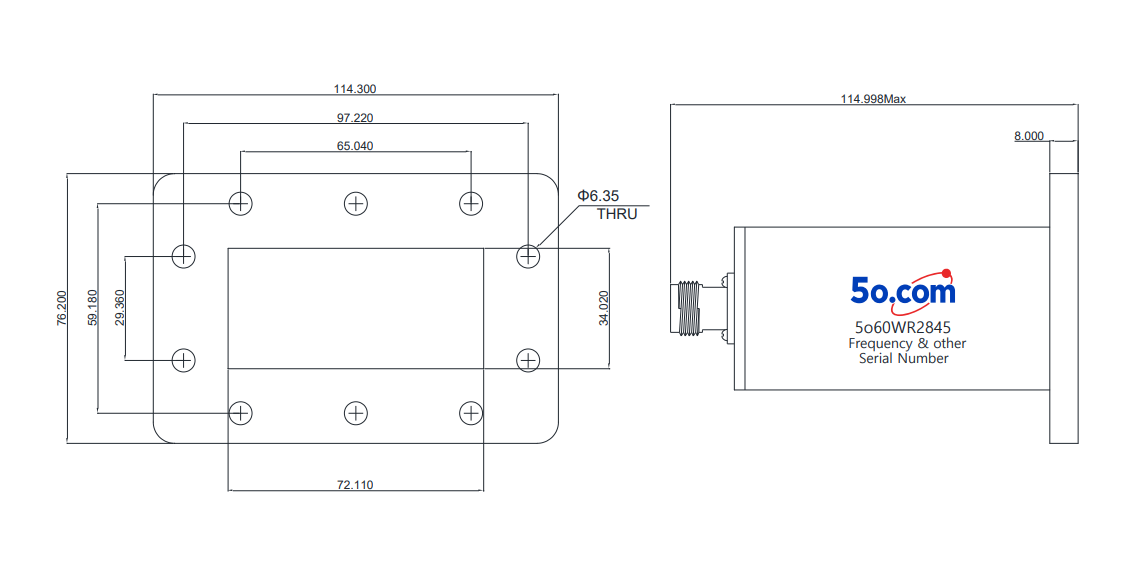

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
