    Waveguide to Coaxial Adapter WR284 (BJ32)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    (Waveguide)

    Connector Type

    5o60WR284026395NK

    2.6 ~ 3.95

    0.15

    1.15

    WR284

    (BJ32)

    N Female

    5o60WR284026395SK

    2.6 ~ 3.95

    0.15

    1.15

    WR284

    (BJ32)

    SMA Female

    5o60WR284026395DK

    2.6 ~ 3.95

    0.15

    1.15

    WR284

    (BJ32)

    7/16 Female

    Basic Specifications

    Power

    100W

    Impedance

    50Ω

    Peak Power

    3000W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR284(BJ32)

    Storage Temperature

    -55 ~+125℃

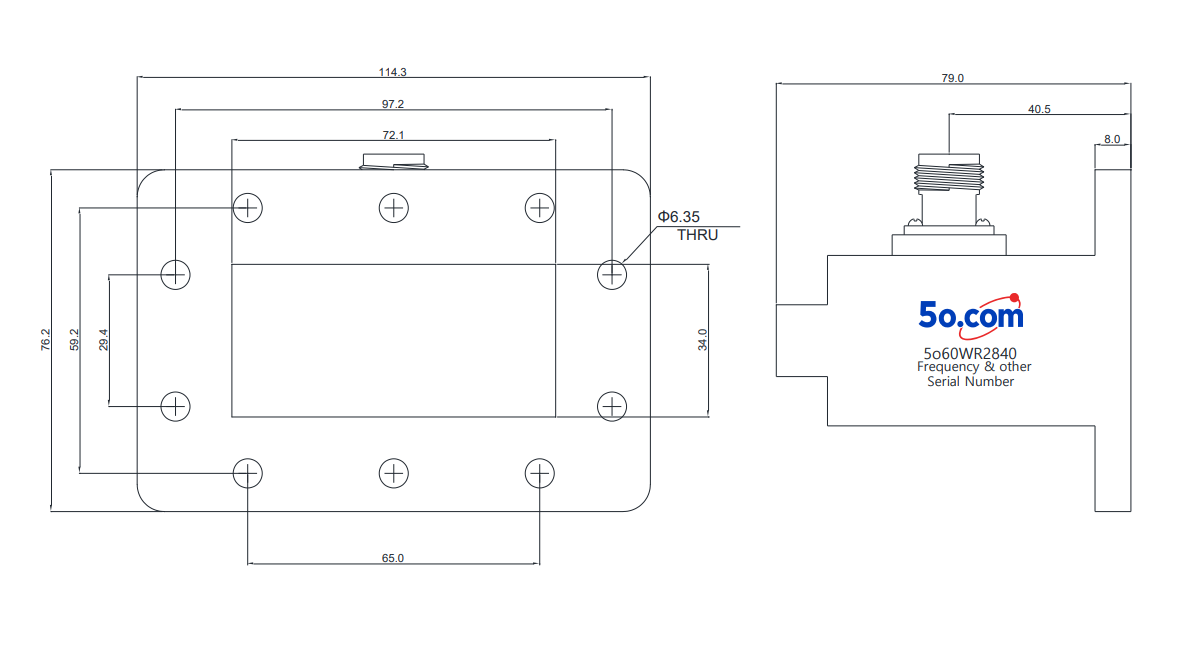

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
