3.22~4.90GHz Waveguide to Coaxial Adapter WR229(BJ40) 5o60WR2290

Waveguide to Coaxial Adapter WR229(BJ40)

Application

▶Testing and measuring equipment.

▶Radar and communication systems.

▶Satellite and wireless communication.

▶Compact wiring scenario.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Connector Type

(Waveguide)

Power(W)

Connector Type

5o60WR229032249NK

3.22 ~ 4.9

0.15

1.15

WR229

(BJ40)

100

N Female

5o60WR229032249SK

3.22 ~ 4.9

0.15

1.15

WR229

(BJ40)

50

SMA Female

Basic Specifications

Power

50W/100W

Impedance

50Ω

Peak Power

3000W

Operating Temperature

-55 ~ +85℃

Connector Type

(Waveguide)

WR229(BJ40)

Storage Temperature

-55 ~+125℃

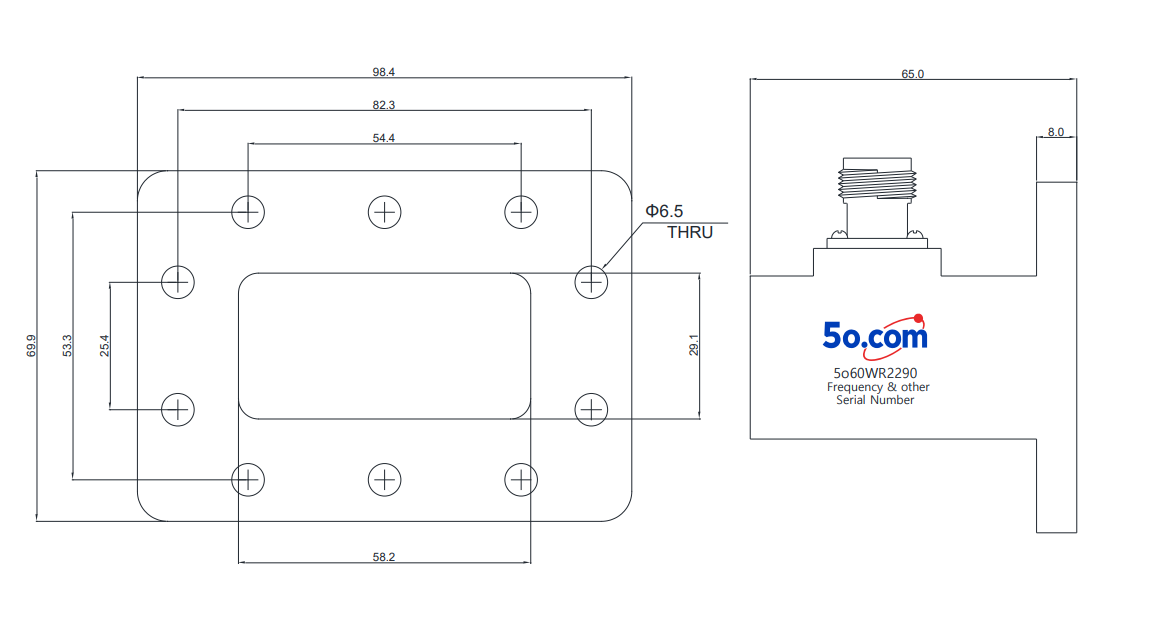

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
