    Waveguide to Coaxial Adapter WR22 (BJ400)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    (Waveguide)

    Connector Type

    5o60WR224335024K

    33.0 ~ 50.0

    0.5

    1.6

    WR22

    (BJ400)

    2.4mm Female

    Basic Specifications

    Power

    3W

    Impedance

    50Ω

    Peak Power

    100W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR22(BJ400)

    Storage Temperature

    -55 ~+125℃

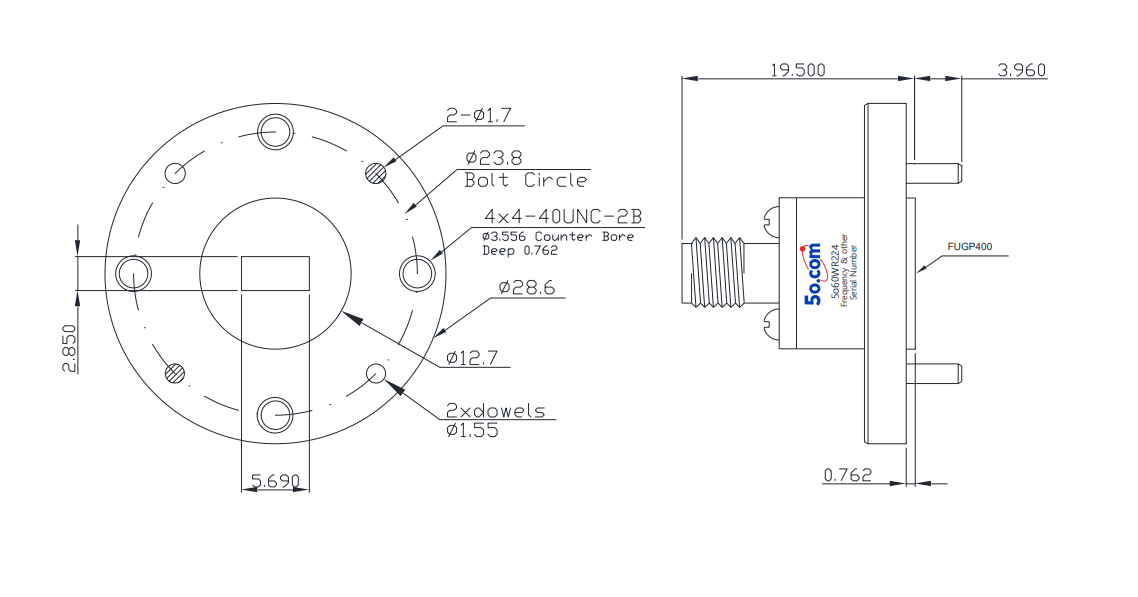

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
