40.0~60.0GHz Waveguide to Coaxial Adapter WR19(BJ500) 5o60WR194

Waveguide to Coaxial Adapter WR19 (BJ500)

Application

▶Testing and measuring equipment.

▶Radar and communication systems.

▶Satellite and wireless communication.

▶Compact wiring scenario.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Connector Type

(Waveguide)

Connector Type

5o60WR1944060185K

40.0 ~ 60.0

1.0

1.8

WR19

(BJ500)

1.85mm Female

Basic Specifications

Power

3W

Impedance

50Ω

Peak Power

100W

Operating Temperature

-55 ~ +85℃

Connector Type

(Waveguide)

WR19(BJ500)

Storage Temperature

-55 ~+125℃

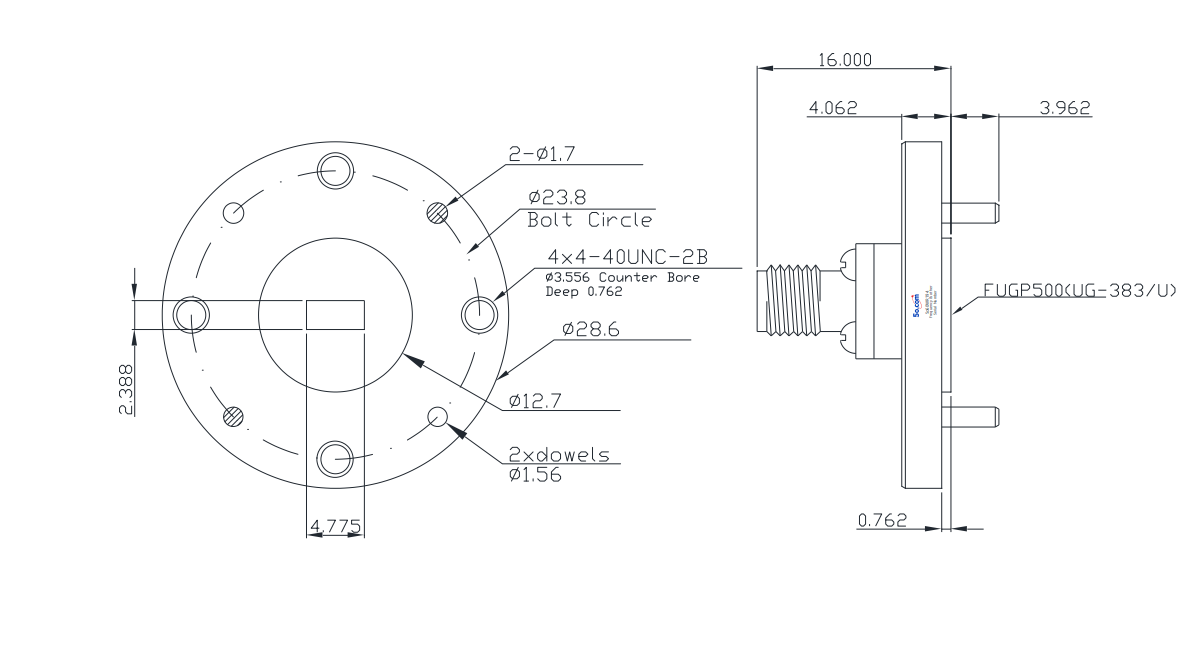

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
