3.94~5.99GHz Waveguide to Coaxial Adapter WR187(BJ48) 5o60WR1870

Waveguide to Coaxial Adapter WR187 (BJ48)

Application

▶Testing and measuring equipment.

▶Radar and communication systems.

▶Satellite and wireless communication.

▶Compact wiring scenario.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Connector Type

(Waveguide)

Connector Type

5o60WR18703394599NK

3.94 ~ 5.99

0.15

1.15

WR187

(BJ48)

N Female

5o60WR18703394599SK

3.94 ~ 5.99

0.15

1.15

WR187

(BJ48)

SMA Female

Basic Specifications

Power

100W

Impedance

50Ω

Peak Power

3000W

Operating Temperature

-55 ~ +85℃

Connector Type

(Waveguide)

WR187(BJ48)

Storage Temperature

-55 ~+125℃

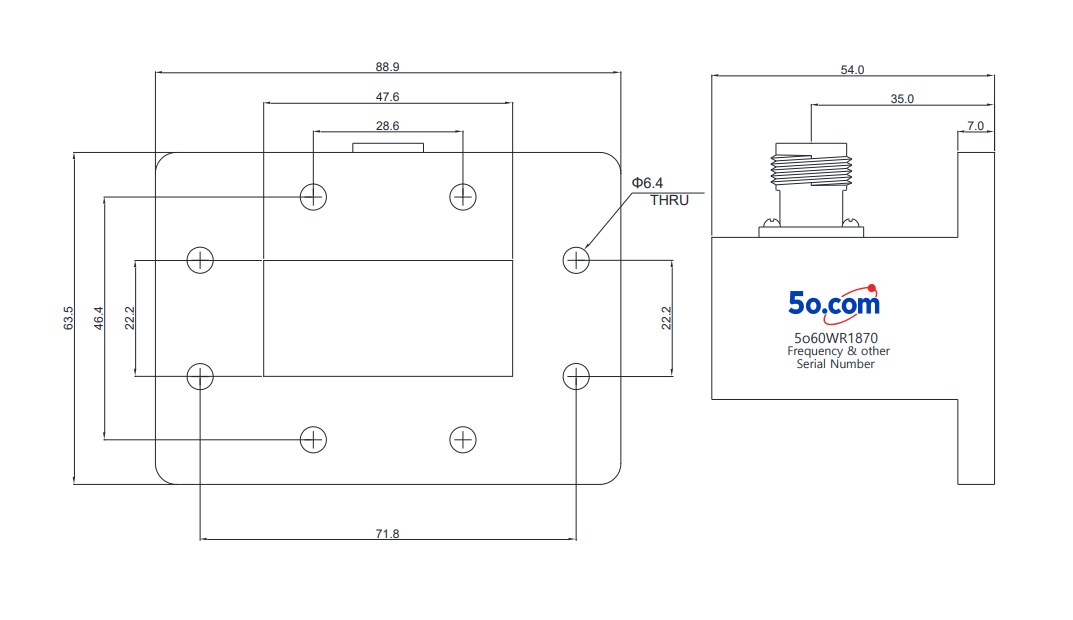

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
