     Waveguide to Coaxial Adapter WR1800 (BJ5)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Insertion Loss

    Max(dB)

    VSWR

    Max

    Connector Type

    (Waveguide)

    Connector

    Type

    5o60WR18000410620NF

    410~620

    0.2

    1.25

    WR1800

    (BJ5)

    N-K

    5o60WR18000410620SK

    410~620

    0.2

    1.25

    WR1800

    (BJ5)

    SMA-K

    5o60WR18000410620DK

    410~620

    0.2

    1.25

    WR1800

    (BJ5)

    7/16-K

    Basic Specifications

    Power

    100W

    Impedance

    50Ω

    Peak Power

    3000W

    Operating Temperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR1800(BJ5)

    Storage Temperature

    -55 ~+125℃

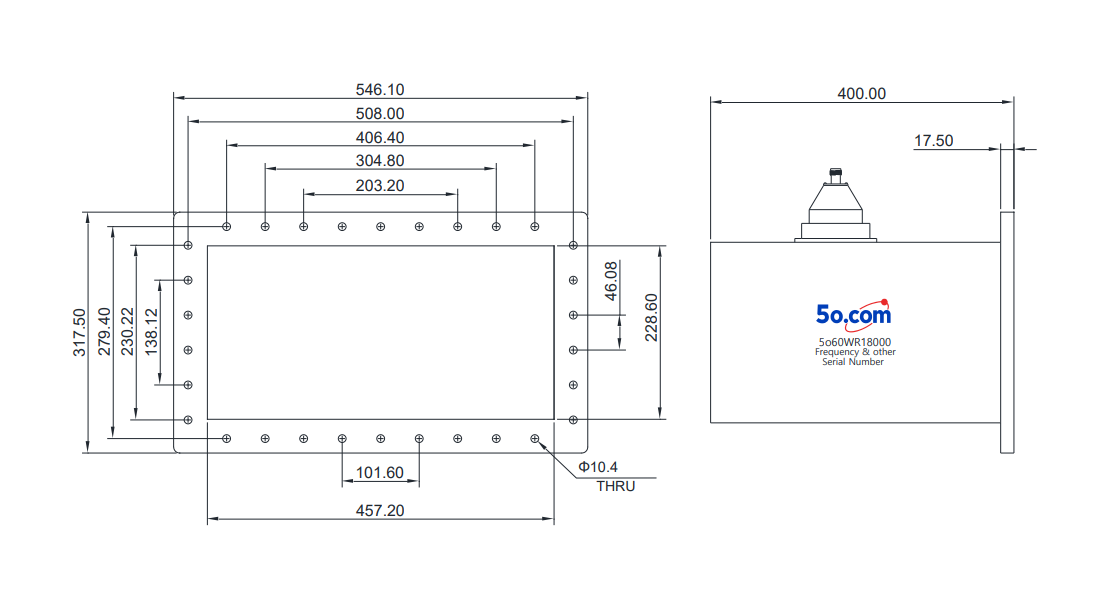

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
