4.64~7.05GHz Waveguide to Coaxial Adapter WR159(BJ58) 5o60WR1590

Waveguide to Coaxial Adapter WR159 (BJ58)

Application

▶Testing and measuring equipment.

▶Radar and communication systems.

▶Satellite and wireless communication.

▶Compact wiring scenario.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Connector Type

(Waveguide)

Connector Type

5o60WR1590467705NK

4.67 ~ 7.05

0.2

1.15

WR159

(BJ58)

N Female

5o60WR1590467705SK

4.67 ~ 7.05

0.2

1.15

WR159

(BJ58)

SMA Female

Basic Specifications

Power

100W

Impedance

50Ω

Peak Power

3000W

Operating Temperature

-55 ~ +85℃

Connector Type

(Waveguide)

WR159(BJ58)

Storage Temperature

-55 ~+125℃

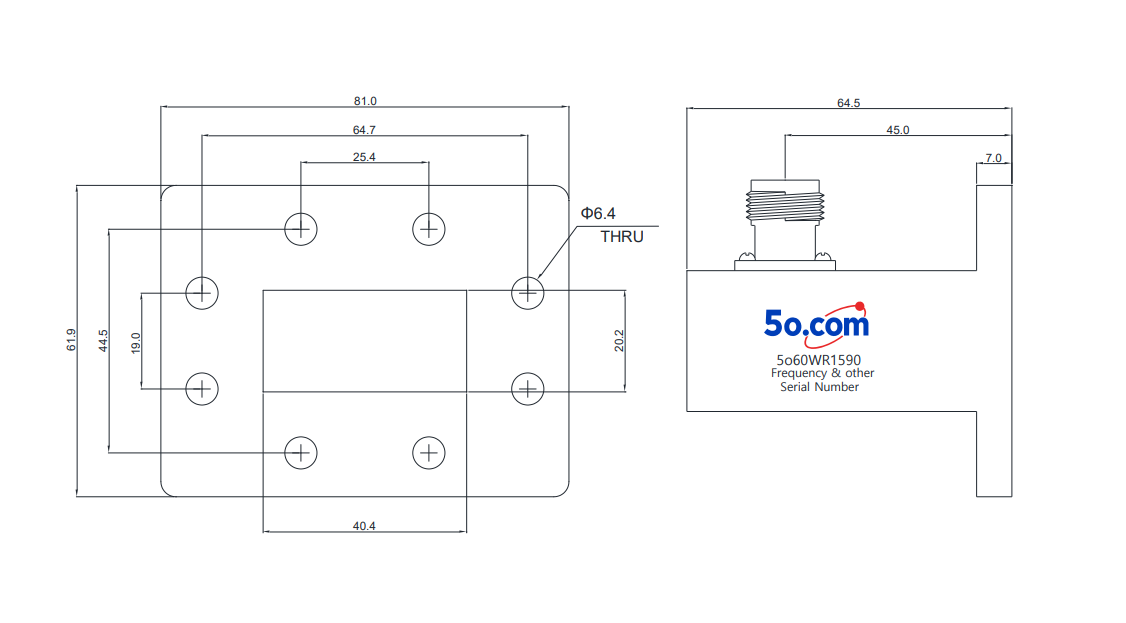

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
