    Waveguide to Coaxial Adapter WR15 (BJ620)

     Application

    ▶Testing and measuring equipment.

    ▶Radar and communication systems.

    ▶Satellite and wireless communication.

    ▶Compact wiring scenario.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    (Waveguide)

    Connector Type

    5o60WR15449867185K

    49.8 ~ 67.0

    0.6

    1.8

    WR15

    (BJ620)

    1.85mm Female

    Basic Specifications

    Power

    3W

    Impedance

    50Ω

    Peak Power

    100W

    OperatingTemperature

    -55 ~ +85℃

    Connector Type

    (Waveguide)

    WR15(BJ620)

    StorageTemperature

    -55~+125℃

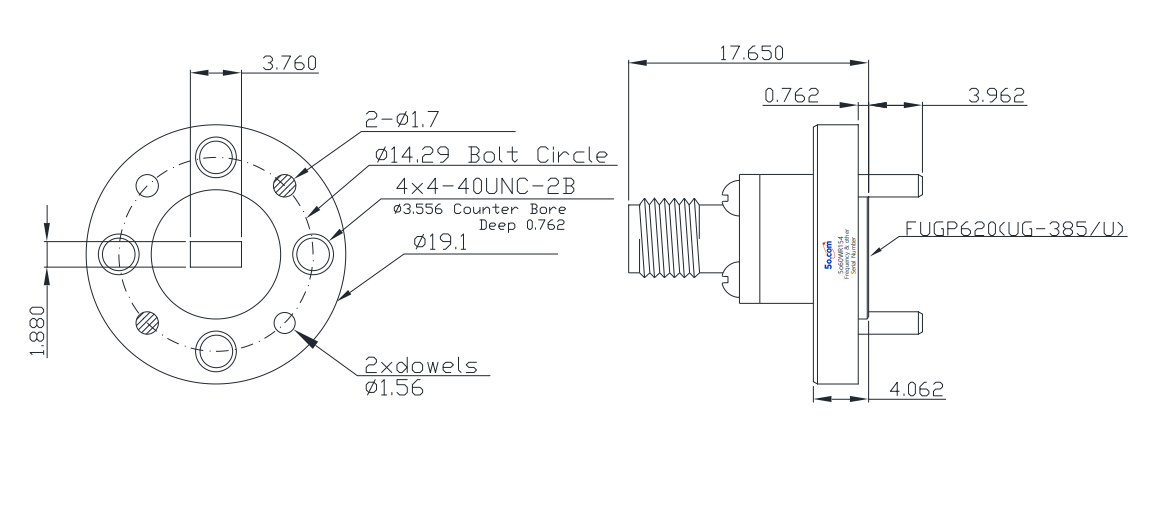

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
