6.57~9.99GHz Waveguide to Coaxial Adapter WR112(BJ84) 5o60WR1124

Waveguide to Coaxial Adapter WR112 (BJ84)

Application

▶Testing and measuring equipment.

▶Radar and communication systems.

▶Satellite and wireless communication.

▶Compact wiring scenario.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (GHz)

Insertion Loss
Max(dB)

VSWR
Max

Connector Type

(Waveguide)

Connector Type

5o60WR1124657999NK

6.57 ~ 9.99

0.3

1.25

WR112

(BJ84)

N-K

5o60WR1124657999SK

6.57 ~ 9.99

0.3

1.25

WR112

(BJ84)

SMA-K

Basic Specifications

Power

50W

Impedance

50Ω

Peak Power

3000W

Operating Temperature

-55 ~ +85℃

Connector Type

(Waveguide)

WR112(BJ84)

Storage Temperature

-55 ~+125℃

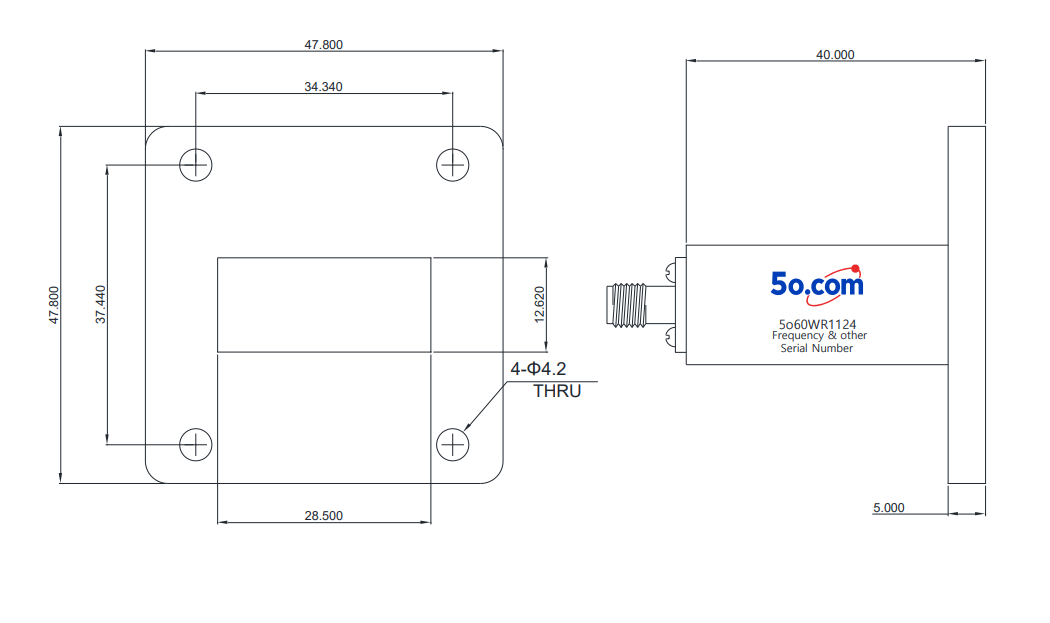

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
