    Dual Directional Coupler 1400 ~ 2000MHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test , etc.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range

    (GHz)

    Nominal Coupling

    (dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector Type

    5o567448014230SK

    1.4 ~2.0

    30±1.0

    ±0.3@1.65~1.85GHz

    0.5

    18

    1.3

    SMA Female

    5o567448014230NK

    1.4 ~2.0

    30±1.0

    ±0.3@1.65~1.85GHz

    0.5

    18

    1.3

    N Female

    Basic Specifications

    Dimension

    74*48*20mm

    Connector Type

    N/SMA Female

    Power

    120W

    Operating Temperature

    -40~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55 ~+125℃

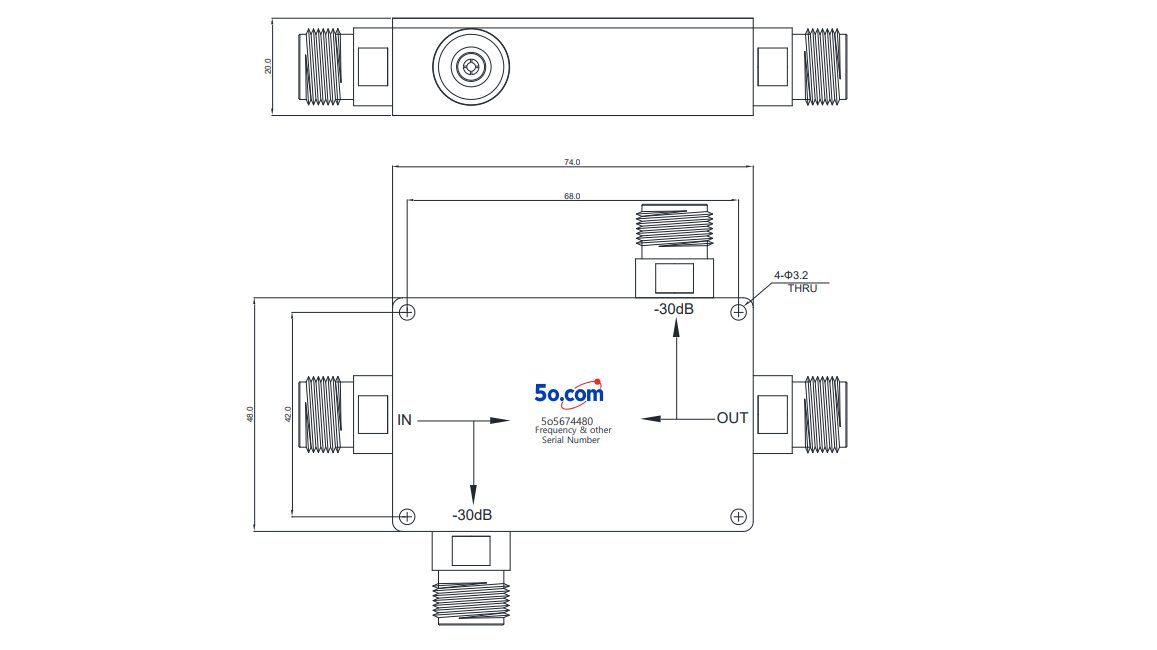

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
