Directional Coupler 800 to 3600MHz 5o56214240

Dual Directional Coupler 800 ~ 3600MHz

Application

▶Applications of Radio frequency and Microwave systems.

▶Industrial and sensing applications.

▶Radio frequency mixing and filtering.

▶High power processing, anti-interference test , etc.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range

(GHz)

Nominal Coupling

(dB)

IL.
(dB)

Directivity

(dB)

VSWR

Connector Type

5o5621424008003600107SK

0.8 ~3.6

10±1.3

7±1.3

3.5

15

1.5

SMA Female

5o5621424008003600107NK

0.8 ~3.6

10±1.3

7±1.3

3.5

15

1.5

N Female

Basic Specifications

Dimension	2142420mm	Connector Type	N/SMA Female
Power	10W	Operating Temperature	-40 ~ +70℃
Impedance	50Ω	Storage Temperature	-55 ~+125℃

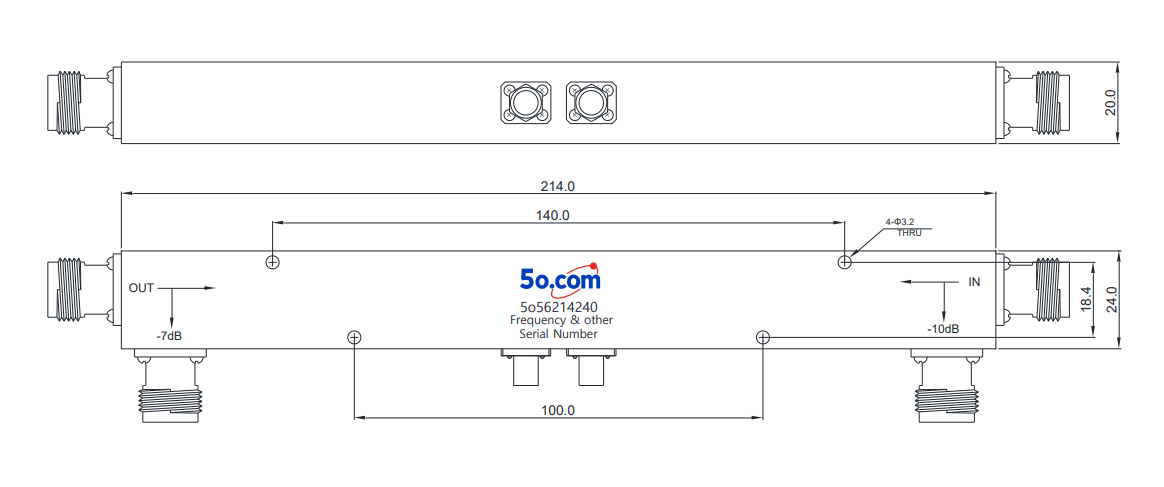

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
