    Directional Coupler 6.0 ~18.0GHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test , etc.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range

    (GHz)

    Nominal Coupling

    (dB)

    Flatness

    (dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector Type

    5o554315461810SK

    6.0 ~18.0

    10±1

    ±1.0

    1.2

    12

    1.5

    SMA Female

    5o554315461820SK

    6.0 ~18.0

    20±1

    ±1.0

    1.0

    12

    1.5

    SMA Female

    5o554315461830SK

    6.0 ~18.0

    30±1

    ±1.5

    0.8

    10

    1.5

    SMA Female

    Basic Specifications

    Dimension

    43*15*11mm

    Connector Type

    SMA Female

    Power

    30W

    Operating Temperature

    -55 ~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55 ~+125℃

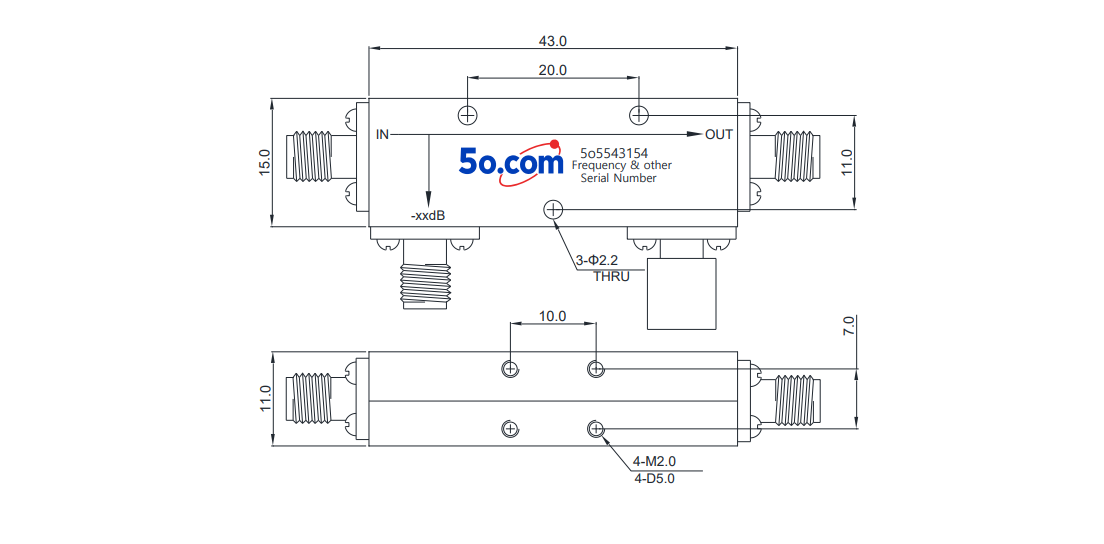

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
