    Directional Coupler 500 ~ 2500MHz

    Application

    ▶Applications of Radio frequency and Microwave systems.

    ▶Industrial and sensing applications.

    ▶Radio frequency mixing and filtering.

    ▶High power processing, anti-interference test ‌, etc.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Frequency Range

    (GHz)

    Nominal Coupling

    (dB)

    Flatness

    (dB)

    IL.
      (dB)

    Directivity

    (dB)

    VSWR

    Connector Type

    5o55133150500250010SK

    0.5 ~2.5

    10±1

    ±0.7

    0.8

    18

    1.25

    SMA-K

    5o55133150500250020SK

    0.5   ~2.5

    20±1

    ±0.7

    0.5

    18

    1.25

    SMA-K

    5o55133150500250030SK

    0.5   ~2.5

    30±1

    ±0.7

    0.5

    18

    1.25

    SMA-K

    Basic Specifications

    Dimension

    133*15*11mm

    Connector Type

    SMA Female

    Power

    50W

    Operating Temperature

    -55 ~ +85℃

    Impedance

    50Ω

    Storage Temperature

    -55 ~+125℃

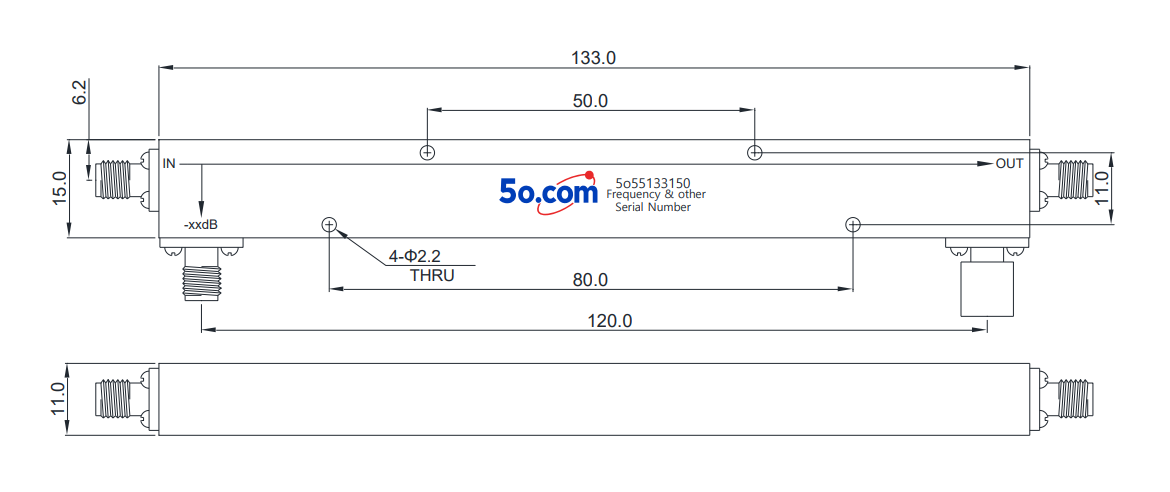

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
