Part Number

FrequencyRange

(MHz)

Nominal

Coupling

(dB)

IL.
  (dB)

Directivity

(dB)

VSWR

ConnectorType

5o5512040069827005NK

698 ~ 2700

5±0.8

2.1

19

1.25

N Female

5o5512040069827006NK

698 ~ 2700

6±0.8

1.7

19

1.25

N Female

5o5512040069827007NK

698 ~ 2700

7±0.8

1.4

19

1.25

N Female

5o5512040069827008NK

698 ~ 2700

8±0.8

1.1

19

1.25

N Female

5o55120400698270010NK

698 ~ 2700

10±1.0

0.8

19

1.25

N Female

5o55120400698270013NK

698 ~ 2700

13±1.0

0.5

19

1.25

N Female

5o55120400698270015NK

698 ~ 2700

15±1.0

0.4

19

1.25

N Female

5o55120400698270020NK

698 ~ 2700

20±1.0

0.22

19

1.25

N Female

5o55120400698270030NK

698 ~ 2700

30±1.5

0.2

19

1.25

N Female

5o55120400698270040NK

698 ~ 2700

40±1.5

0.2

19

1.25

N Female

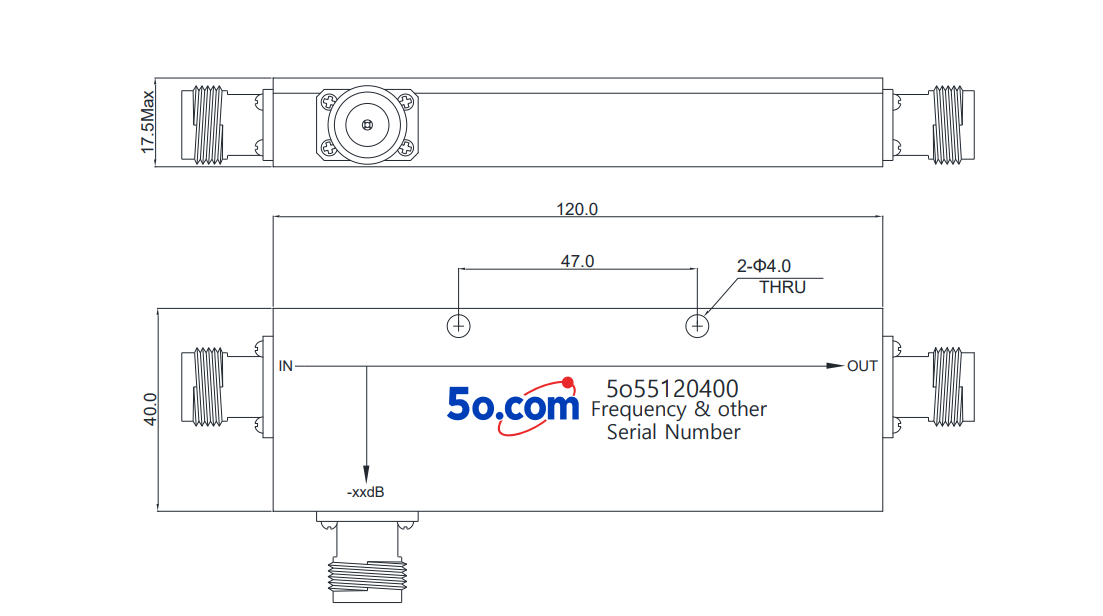

Dimension

120*40*17.5mm

PIM3(dBc)

-140dBc @2x43dBm

Power

200W

OperatingTemperature

-55 ~ +85℃

Impedance

50Ω

StorageTemperature

-55 ~+125℃
