    Triplexer 1400 ~ 4600MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Supports customer-oriented customization.

    ▶It supports a one-year standard warranty.

    ▶Military, space and commercial applications.


    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation
      Min(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o419072014004600NK

    CH1

    1400 ~ 1600

    30

    0.5

    1.22

    N Female

    CH2

    2900 ~ 3100

    CH3

    4400 ~ 4600

    5o419072014004600SK

    CH1

    1400 ~ 1600

    30

    0.5

    1.22

    SMA Female

    CH2

    2900 ~ 3100

    CH3

    4400 ~ 4600

    Basic Specifications

    Dimension

    90*72*33mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55~+125℃

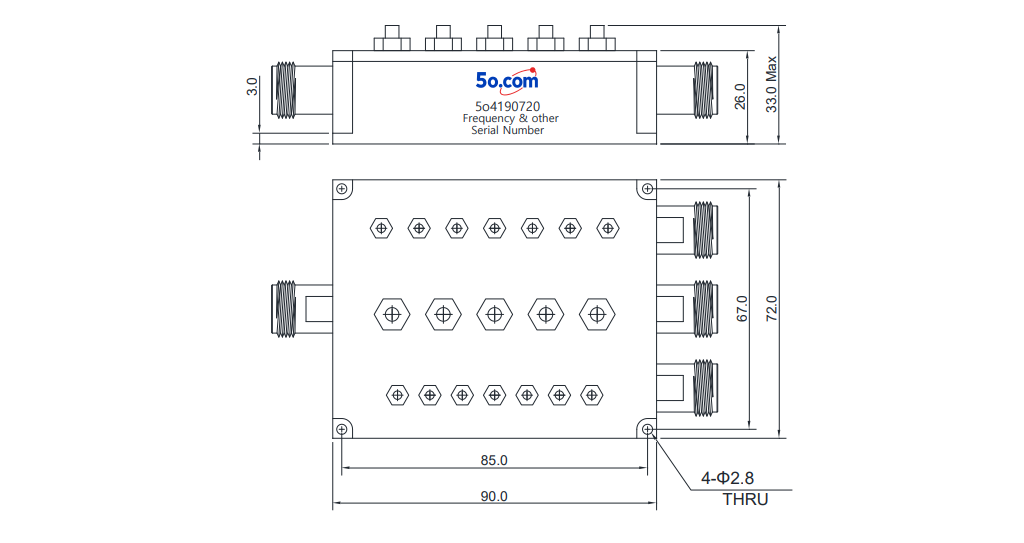

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
