Triplexer 1710 to 1920MHz 5o411201200

Triplexer 1710 ~ 1920MHz

Application

▶Mobile communication system.

▶Public safety and emergency communication.

▶Supports customer-oriented customization.

▶It supports a one-year standard warranty.

▶Military, space and commercial applications.

RF Characteristics

Part Number	Frequency Range (MHz)		Isolation Min(dB)	Ripple Max(dB)	Insertion Loss Max(dB)	Rejection	VSWR Max	Connector Type
5o41120120017101920SK	CH1	1710 ~ 1735	50	1.0	1.5	50dB@DC～1610MHz 50dB@1805~2700MHz	1.3	N Female
	CH2	1805 ~ 1830				50dB@DC～1735MHz 50dB@1880～2700MHz
	CH3	1880 ~ 1920				50dB@DC～1830MHz 50dB@2100～2700MHz
5o41120120017101920NK	CH1	1710 ~ 1735	50	1.0	1.5	50dB@DC～1610MHz 50dB@1805~2700MHz	1.3	SMA Female
	CH2	1805 ~ 1830				50dB@DC～1735MHz 50dB@1880～2700MHz
	CH3	1880 ~ 1920				50dB@DC～1830MHz 50dB@2100～2700MHz

Basic Specifications

Dimension	12012038mm	Impedance	50Ω
Power	50W	Operating Temperature	-30 ~ +70℃
Appearance Color	Black	Storage Temperature	-55~+125℃

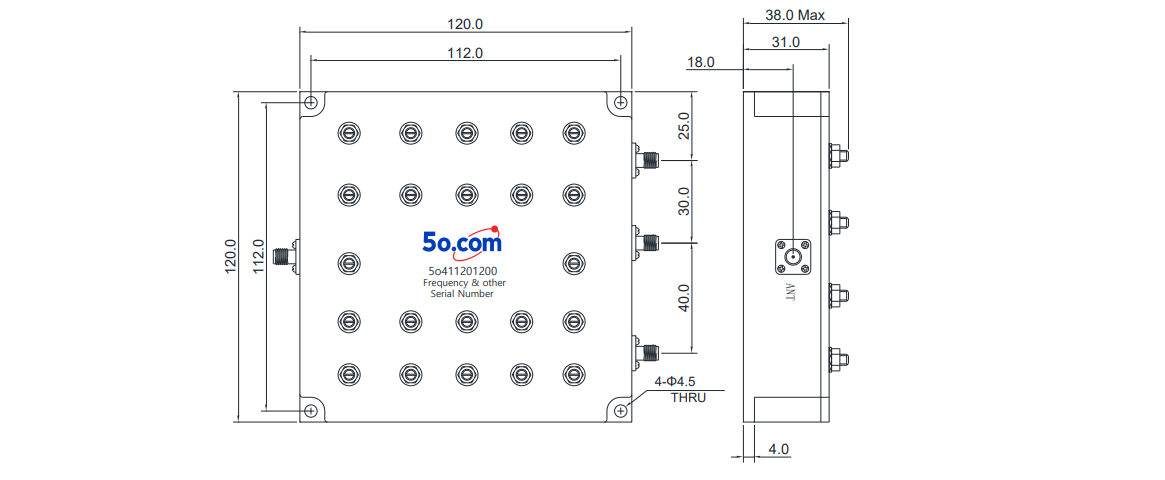

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
