    Triplexer 1000 ~ 3700MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Supports customer-oriented customization.

    ▶It supports a one-year standard warranty.

    ▶Military, space and commercial applications.

    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation
      Min(dB)

    Insertion Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o4111676010003700SK

    CH1

    1000 ~ 1250

    30

    0.5

    1.22

    SMA Female

    CH2

    2000 ~ 2500

    CH3

    3000 ~ 3750

    5o4111676010003700NK

    CH1

    1000 ~ 1250

    30

    0.5

    1.22

    N Female

    CH2

    2000 ~ 2500

    CH3

    3000 ~ 3750

    Basic Specifications

    Dimension

    116*76*40mm

    Impedance

    50Ω

    Power

    100W

    Operating Temperature

    -30 ~ +70℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~+125℃

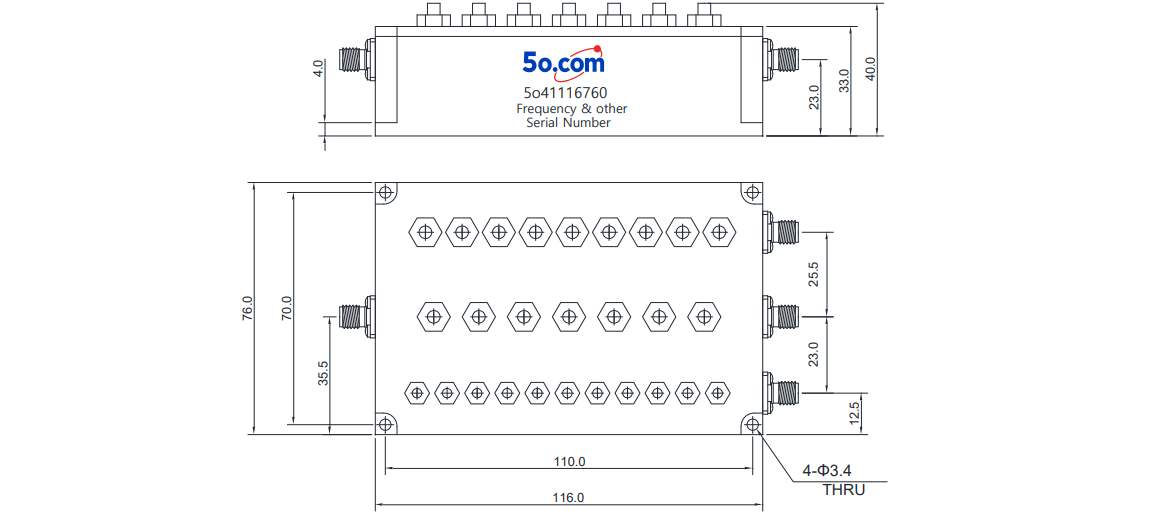

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
