    Triplexer 87 ~ 416MHz

    Application

    ▶Mobile communication system.

    ▶Public safety and emergency communication.

    ▶Supports customer-oriented customization.

    ▶It supports a one-year standard warranty.

    ▶Military, space and commercial applications.

    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation
      Min(dB)

    Ripple

    Max(dB)

    Insertion   Loss
      Max(dB)

    VSWR
      Max

    Connector Type

    5o41100120087416NK

    CH1

    87 ~ 108

    60

    1.0

    1.5

    1.3

    N Female

    CH2

    351 ~ 366

    CH3

    402 ~ 416

    5o41100120087416SK

    CH1

    87 ~ 108

    60

    1.0

    1.5

    1.3

    SMA Female

    CH2

    351 ~ 366

    CH3

    402 ~ 416

    Basic Specifications

    Dimension

    100*120*30mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -20 ~ +65℃

    Appearance Color

    Black

    Storage Temperature

    -55 ~+125℃

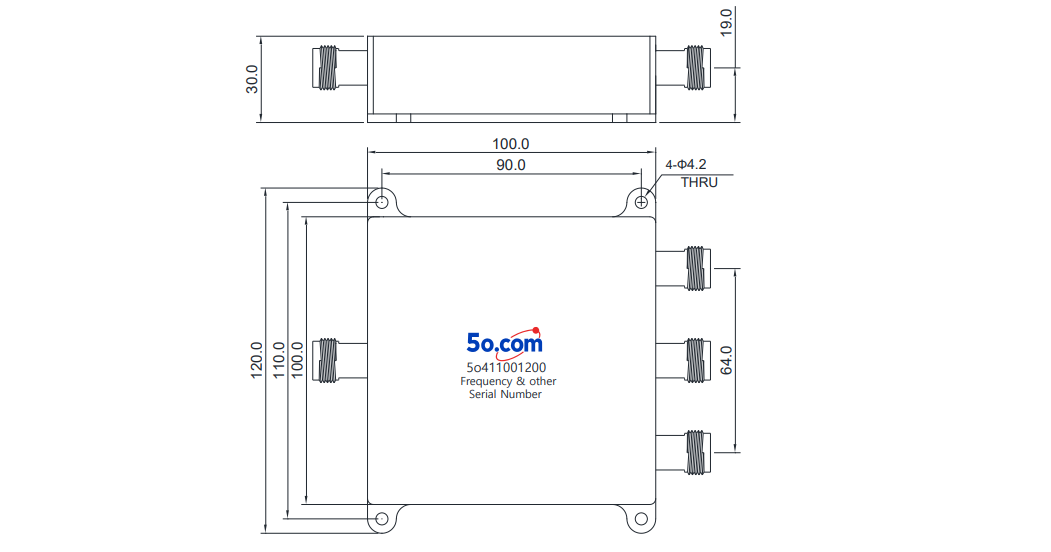

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
