    16 Way Power Divider 500 ~2400MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.

    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR

    Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector Type

    5o3621710505002400SK

    500 ~ 2400

    18

    1.5

    2.3(Split 12)

    ±12˚

    ±0.7dB

    SMA Female

    Basic Specifications

    Dimension

    217*105*11mm

    Impedance

    50Ω

    Splitter Power

    10W

    Operating Temperature

    -55 ~ +85℃

    Combiner Power

    3W

    Storage Temperature

    -55 ~+125℃

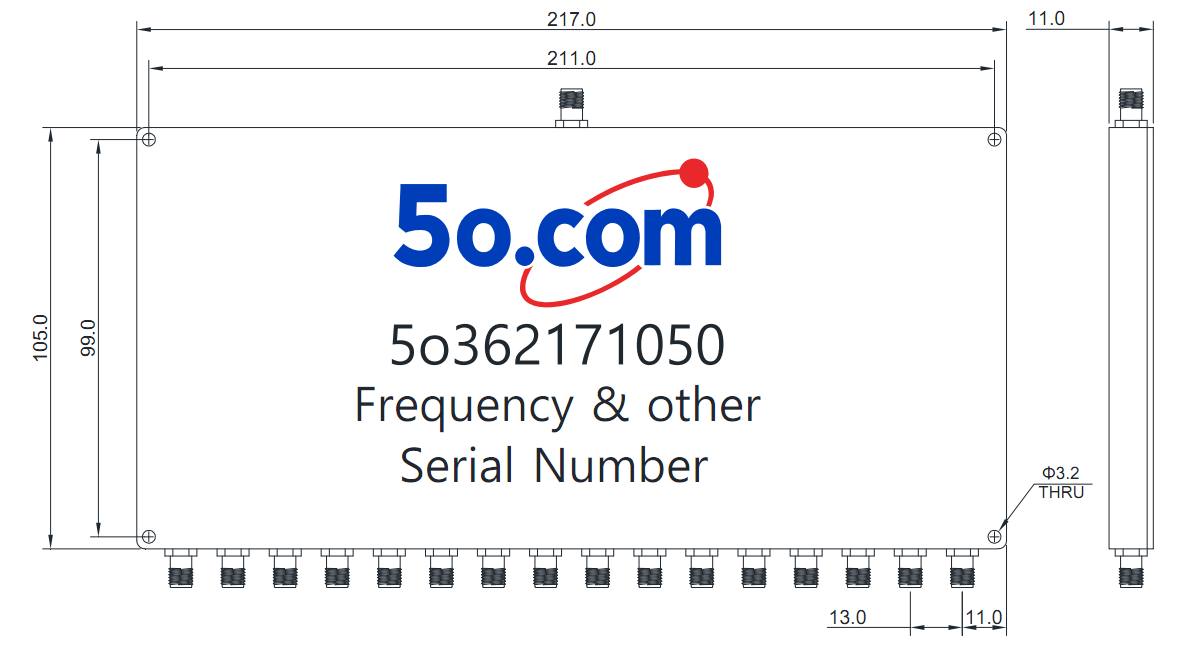

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
