    2 Way Power Divider 100 ~ 2000MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.




    RF Characteristics

    Part Number

    Frequency Range (MHz)

    Isolation

    Min(dB)

    VSWR Input

    Max

    VSWR Output

     Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector Type

    5o316311001002000SK

    100 ~ 2000

    18

    1.4

    1.3

    1.8dB(Split   3dB)

    ±2°

    ±0.2dB

    SMA Female

    Basic Specifications

    Dimension

    63*110*12mm

    Impedance

    50Ω

    Splitter   Power

    30W

    Operating   Temperature

    -40 ~ +85℃

    Combiner   Power

    2W

    Storage Temperature

    -55 ~+125℃

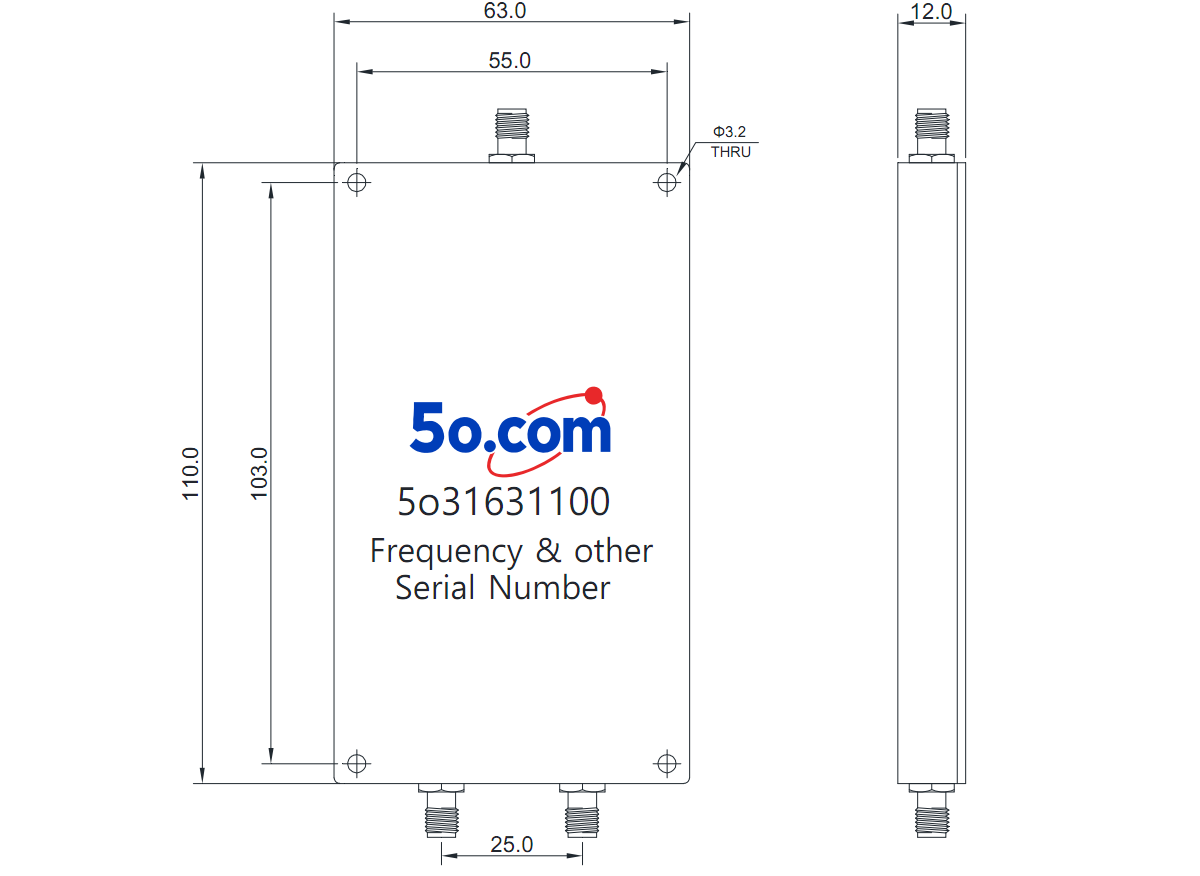

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
