    2 Way Power Divider 1.0 ~ 40.0GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.




    RF Characteristics

    Part Number

    Frequency Range (GHz)

    Isolation

    Min(dB)

    VSWR Input

    Max

    VSWR Output

    Max

    Insertion

    Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector Type

    5o3126781140KK

    1.0~40.0

    16

    1.8

    1.6

    1.8(Split 3dB)

    ±5˚

    ±0.4dB

    2.92mm Female

    Basic Specifications

    Dimension

    26*78*10mm

    Impedance

    50Ω

    Splitter   Power

    20W

    Operating   Temperature

    -45 ~ +85℃

    Combiner   Power

    1W

    Storage Temperature

    -55~+125℃

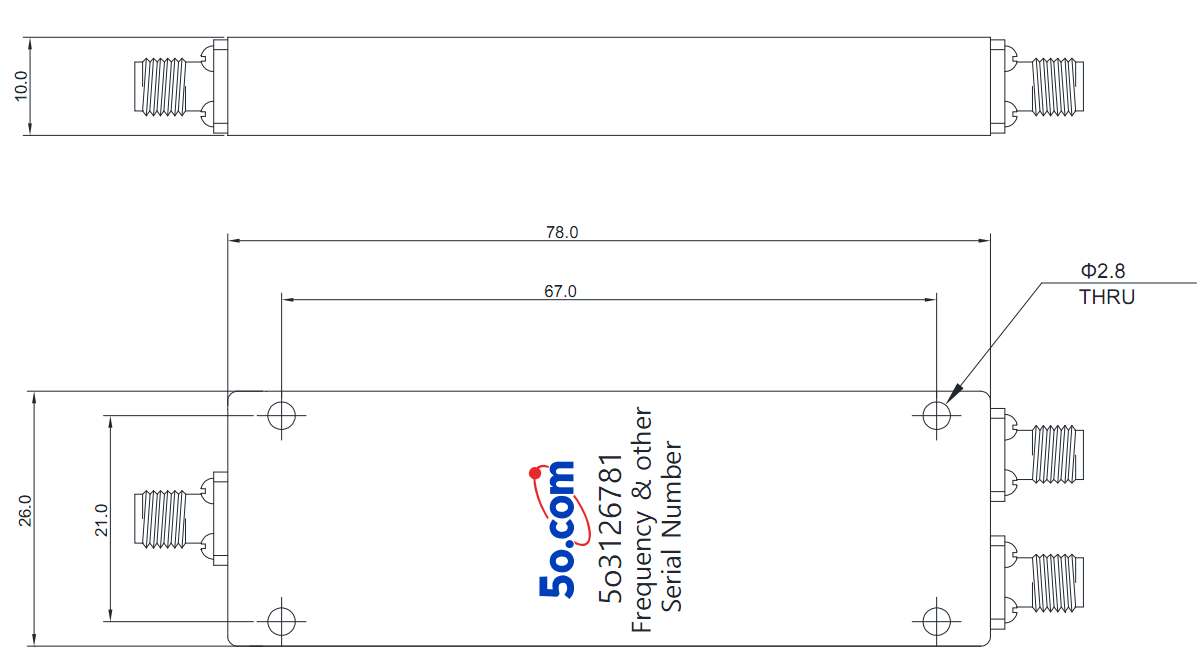

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
