    2 Way Power Divider 18.0 ~ 40.0GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.




    RF Characteristics

    Part Number

    Frequency Range(GHz)

    Isolation

    Min(dB)

    VSWR Input

    Max

    Ripple Max(dB)

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector Type

    5o31261901840KK

    18.0~40.0

    15.0

    1.7

    1.0

    1.5     (Split 3dB)

    ±6˚

    ±0.5dB

    2.92mm Female

    Basic Specifications

    Dimension

    26*19*10mm

    Impedance

    50Ω

    Splitter Power

    10W

    Operating   Temperature

    -40 ~ +80℃

    Combiner Power

    1W

    Storage Temperature

    -55 ~+125℃

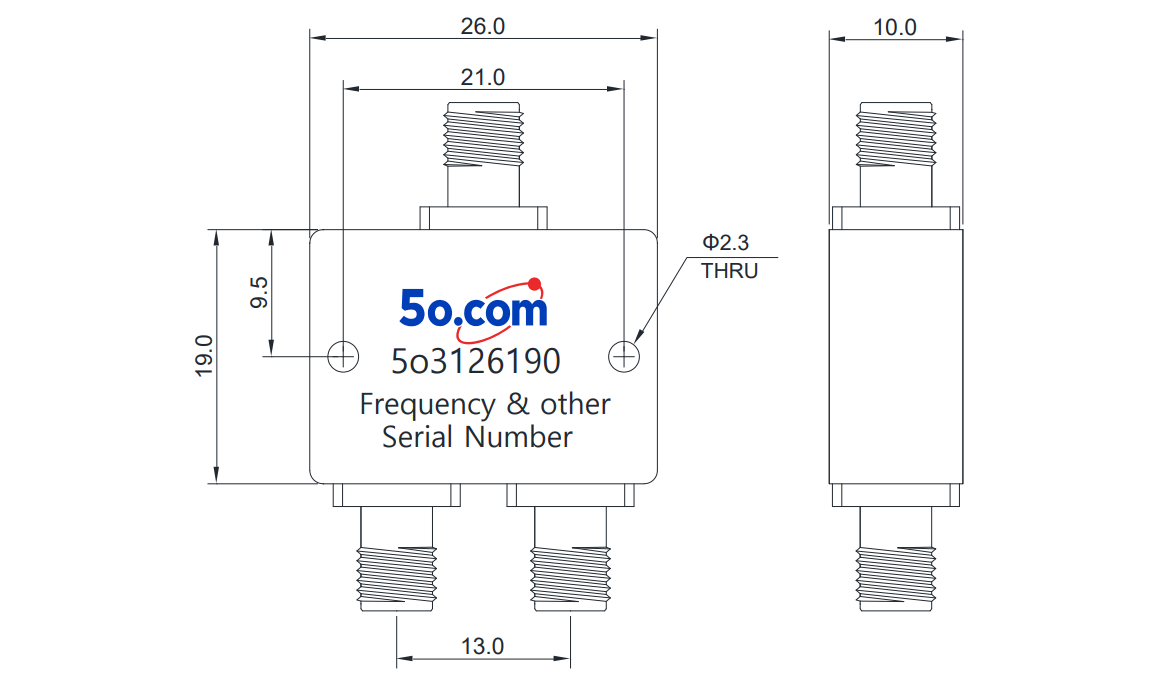

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
