    2 Way Power Divider 136 ~ 960MHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶It supports a one-year standard warranty.

    ▶Military, Space and Commercial applications.

    ▶Testing and measuring equipment.




    RF Characteristics

    Part Number

    Frequency Range

    (MHz)

    Isolation

    Min(dB)

    VSWR

    Max

    Insertion Loss

    Max(dB)

    Phase Unbalance

    Amplitude Unbalance

    Connector Type

    5o311161080136960NK

    136 ~ 960

    22

    1.25

    0.6(Split 3.0dB)

    ±3˚

    ±0.4dB

    N Female

    5o311161080136960SK

    136 ~ 960

    22

    1.25

    0.6(Split 3.0dB)

    ±3˚

    ±0.4dB

    SMA Female

    Basic Specifications

    Dimension

    116.5*108.1*21mm

    Impedance

    50Ω

    Splitter   Power

    50W

    Operating   Temperature

    -40 ~ +85℃

    Combiner   Power

    2W

    Storage Temperature

    -55 ~+125℃

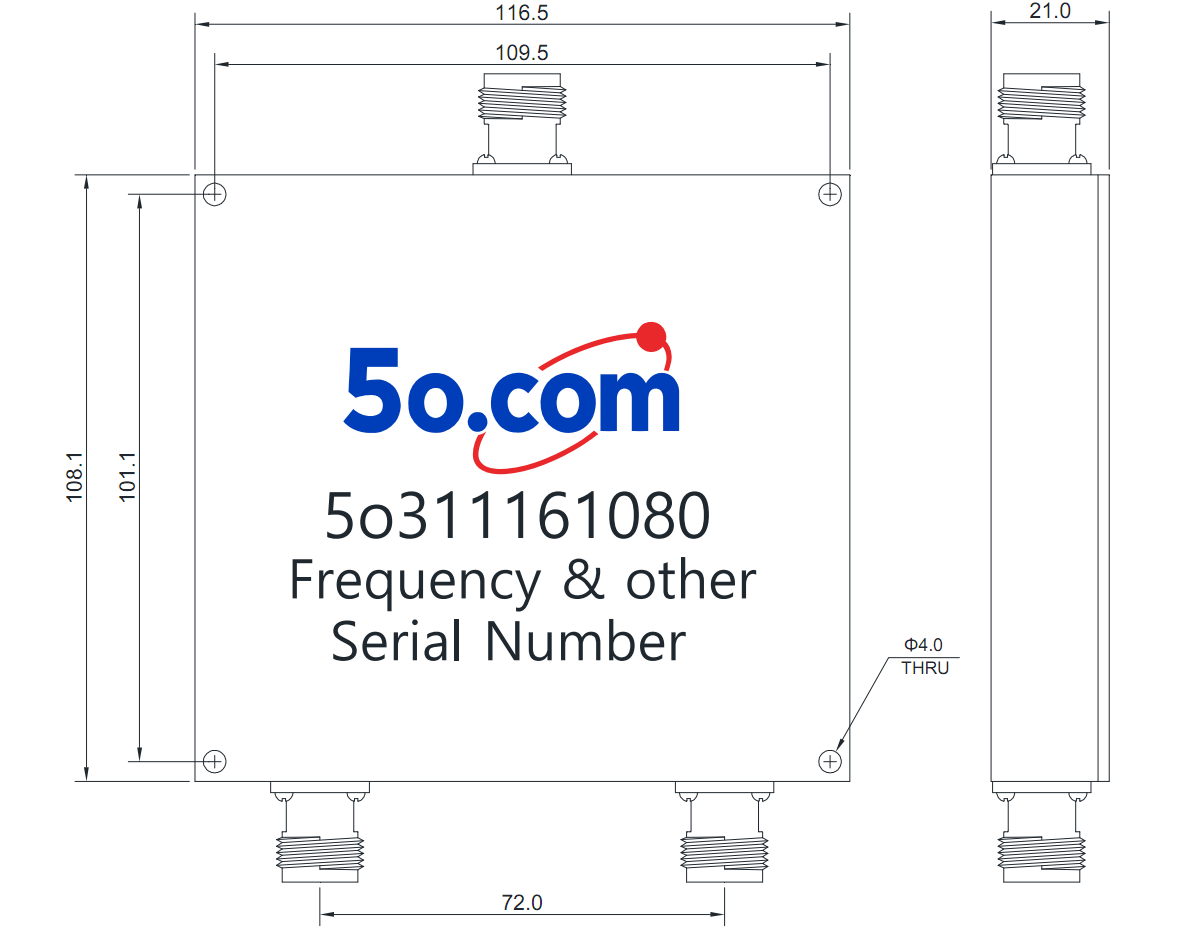

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
