2 way Hybrid Combiner 136~174MHz 5o2T150164450

2 way Combiner / Hybrid Coupler 136 ~ 174MHz

Application

▶Multi-system shared antenna feed system..

▶Base station and repeater system.

▶Indoor distribution system.

▶Radio intercom system.

▶It supports a one-year standard warranty.

RF Characteristics

Part Number

Frequency Range (MHz)

Insertion Loss
Max(dB)

Isolation
Min(dB)

VSWR
Max

Connector

Type

Power(W)

5o2T150164450136174NK

136 ~ 174

0.3

(Coupling 3dB)

1.15

N Female

200(2x100)

5o2T150164450136174SK

136 ~ 174

0.3

(Coupling 3dB)

1.15

SMA Female

100(2x50)

Basic Specifications

Dimension	1644550mm	Operating Temperature	-40 ~ +85℃
Impedance	50Ω	Storage Temperature	-55 ~+125℃

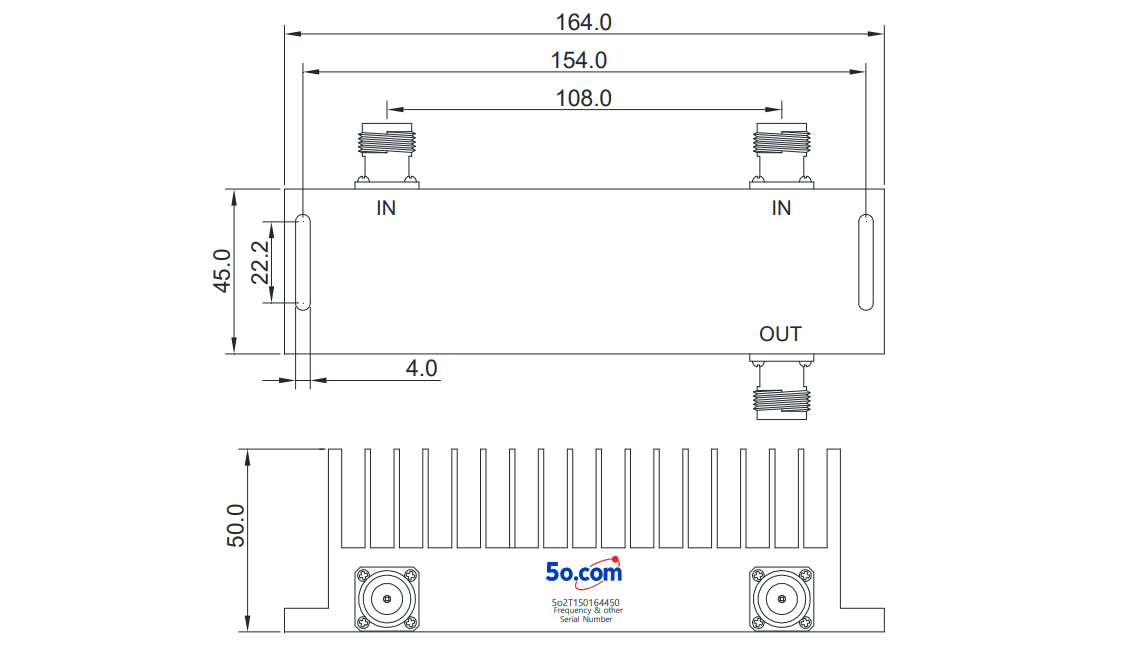

Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
