    Band Stop Filter 1800 ~ 3800MHz

    Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.

    RF Characteristics

    Part Number

    Band Reject

    Frequency

    (MHz)

    Pass Band

     Frequency

    Band Reject

     Rejection

    Min(dB)

    VSWR
      Max

    Insertion Loss

    Max(dB)

    Connector Type

    5o2931170018551875NK

    1855 ~ 1875

    DC~1840MHz
      1885~5000MHz

    50

    2.0

    3.0

    N Female

    5o2931170018001885NK

    1800 ~ 1885

    DC~1770MHz
      1915~5000MHz

    50

    2.0

    3.0

    N Female

    5o2931170018601875NK

    1860 ~ 1875

    DC~1840MHz
      1895~4500MHz

    40

    2.0

    3.0

    N Female

    5o2931170021002180NK

    2100 ~ 2180

    DC~2070MHz
      2210~5000MHz

    50

    2.0

    3.0

    N Female

    5o2931170024902700NK

    2490 ~ 2700

    DC~2460MHz
      2730~5000MHz

    50

    2.0

    3.0

    N Female

    5o2931170034003800NK

    3400 ~ 3800

    DC~3350MHz
      4050~7500MHz

    50

    2.0

    3.0

    N Female

    5o2931170034003800SK

    3400 ~ 3800

    DC~3350MHz
      4050~7500MHz

    50

    2.0

    3.0

    SMA Female

    Basic Specifications

    Dimension

    311.6*70.5*26mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -55 ~ +85℃

    Appearance color

    Black

    Storage Temperature

    -55 ~ +125℃

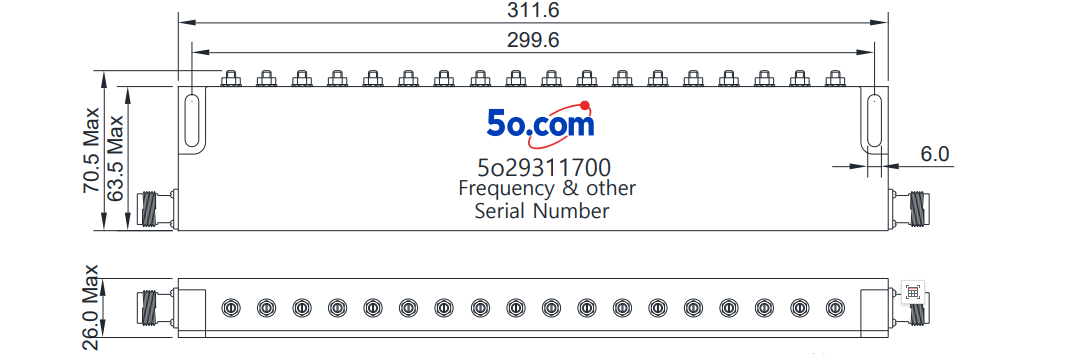

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
