    Band Stop Filter 868 ~ 870MHz

     Application

    ▶Wireless communication system.

    ▶Audio processing, image and data acquisition.

    ▶Biomedical signal processing.

    ▶Radar and sensors.

    ▶It supports a one-year standard warranty.


    RF Characteristics

    Part Number

    Band Reject

    Frequency

    (MHz)

    Band Reject

    Rejection

    Min(dB)

    Pass Frequency

    (MHz)

    Insertion Loss

    Max(dB)

    VSWR

    Max

    Connector Type

    5o29158670868870NK

    868 ~ 870

    50

    DC~821MHz

    925~1200MHz

    0.5

    1.3

    N Female

    5o29158670868870SK

    868 ~ 870

    50

    DC~821MHz

    925~1200MHz

    0.5

    1.3

    SMA Female

    Basic Specifications

    Dimension

    158*67*43mm

    Impedance

    50Ω

    Power

    50W

    Operating Temperature

    -55 ~ +85℃

    Appearance color

    Black

    Storage Temperature

    -55 ~ +125℃

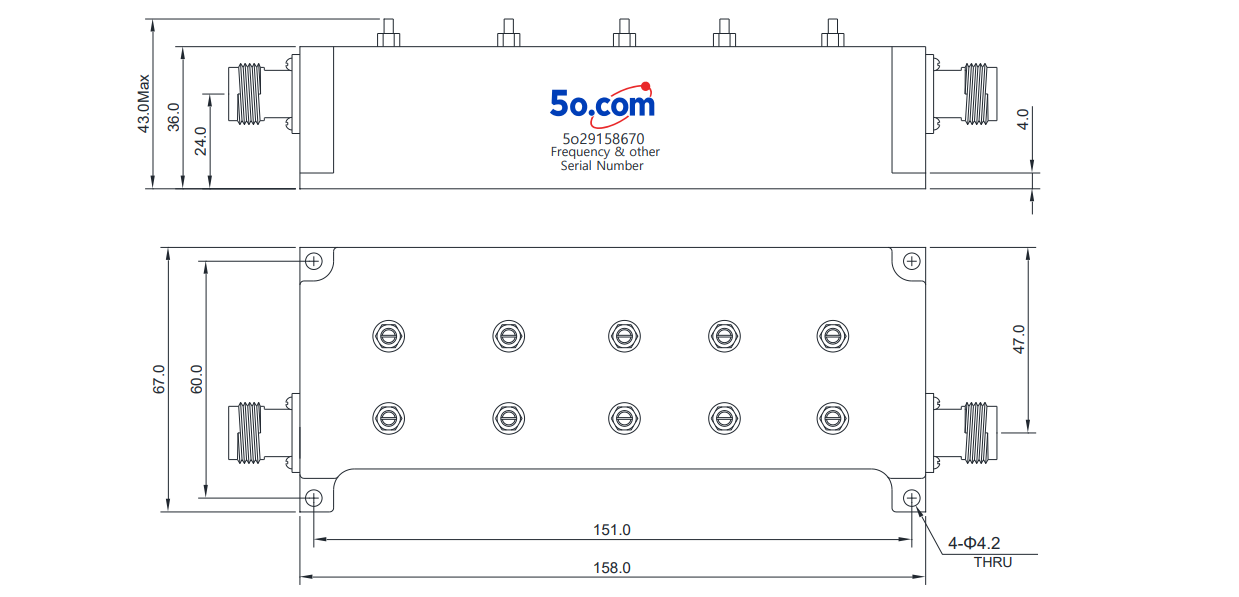

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)
