    download 5o21203N

    2W Coaxial Termination DC-3GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency range

    Power

    VSWR
      Max

    ConnectorType

    Impedance

    5o21203NJ

    DC-3GHz

    2W

    1.15

    N Male

    50 Ω

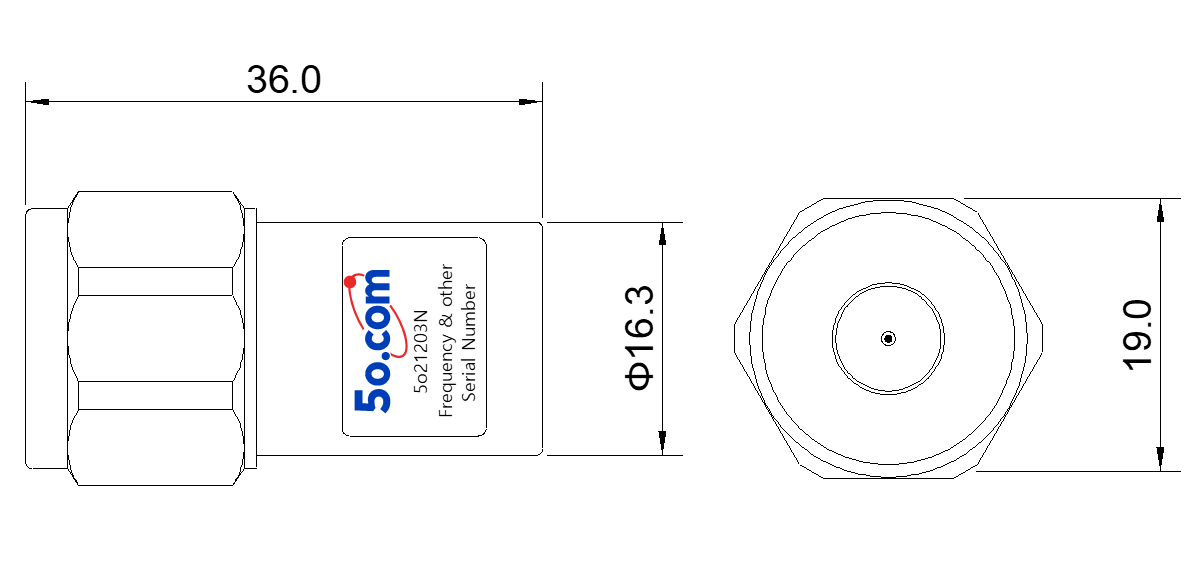

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)       5o21203N.png

    Power Derating Diagram




    Notes

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
