    10W Coaxial Termination DC-8GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency range

    Power

    VSWR
      Max

    Connector Type

    Impedance

    5o211008NJ

    DC-8GHz

    10W

    1.25

    N Male

    50 Ω

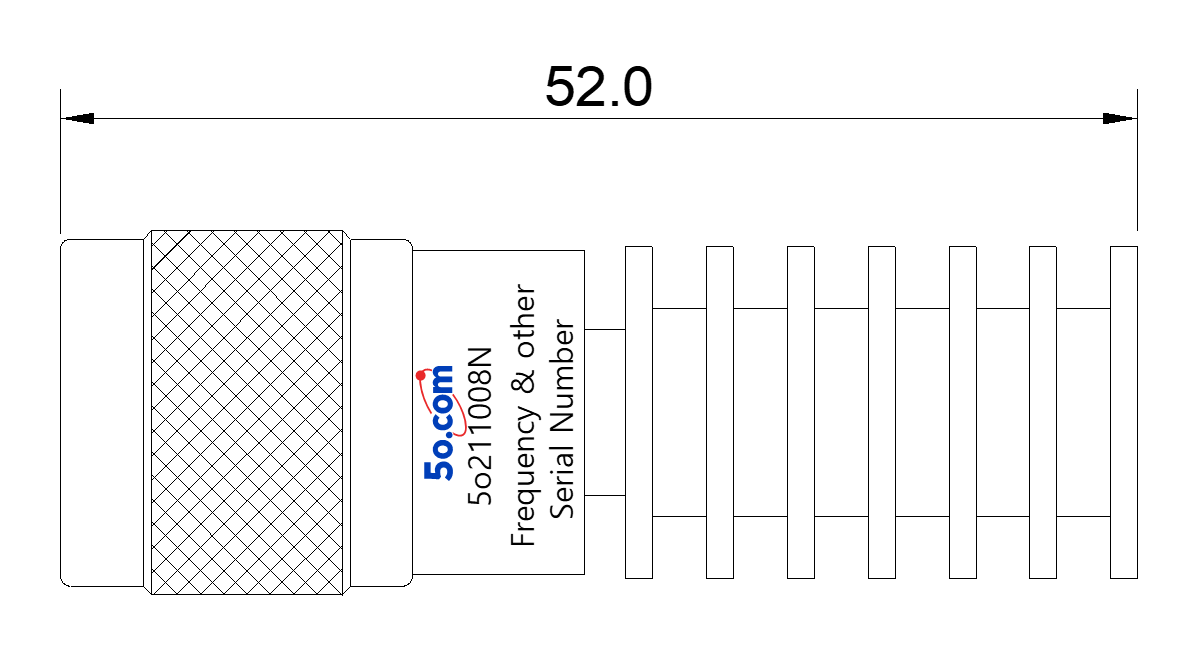

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)



    Power Derating Diagram



    Notes

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
