    10W Coaxial Termination DC-12.4GHz

    Application

    ▶Wireless communication system.

    ▶Radar and satellite systems.

    ▶Testing and measuring equipment.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency range

    Power

    VSWR
      Max

    Connector Type

    Impedance

    5o21100124SJ

    DC-12.4GHz

    10W

    1.2

    SMA Male

    50 Ω

    5o21100124SK

    DC-12.4GHz

    10W

    1.2

    SMA Female

    50 Ω

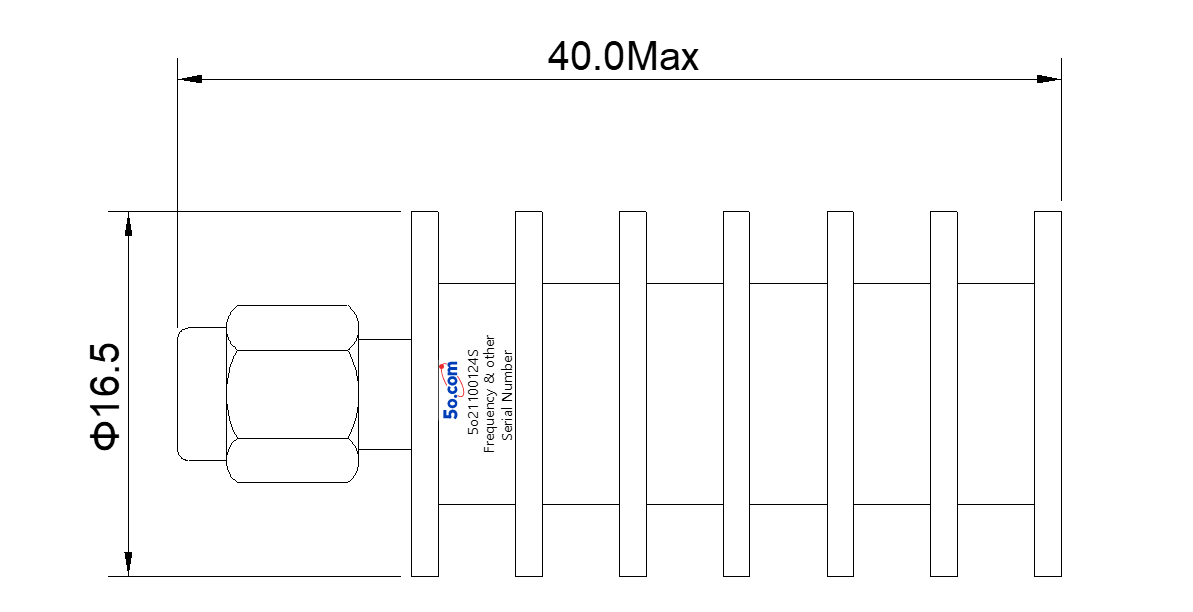

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)




    Power Derating Diagram




    Notes

    ◆If necessary, the product shall be air-cooled for auxiliary heat dissipation.

    ◆Custom design is available upon request.

    ◆It supports a one-year standard warranty.
