    Drop in Circulator 0.8 ~ 2.0GHz


    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
      (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o1172720082

    0.8 ~ 2.0

    12

    1.6

    1.3

    TAB

    Basic Specifications

    Dimension

    72*72*27.4mm

    Impedance

    50Ω

    Forward Power

    300W

    Operating Temperature

    +10 ~ +70℃

    Reverse Power

    300W

    Storage Temperature

    -55 ~ +125℃

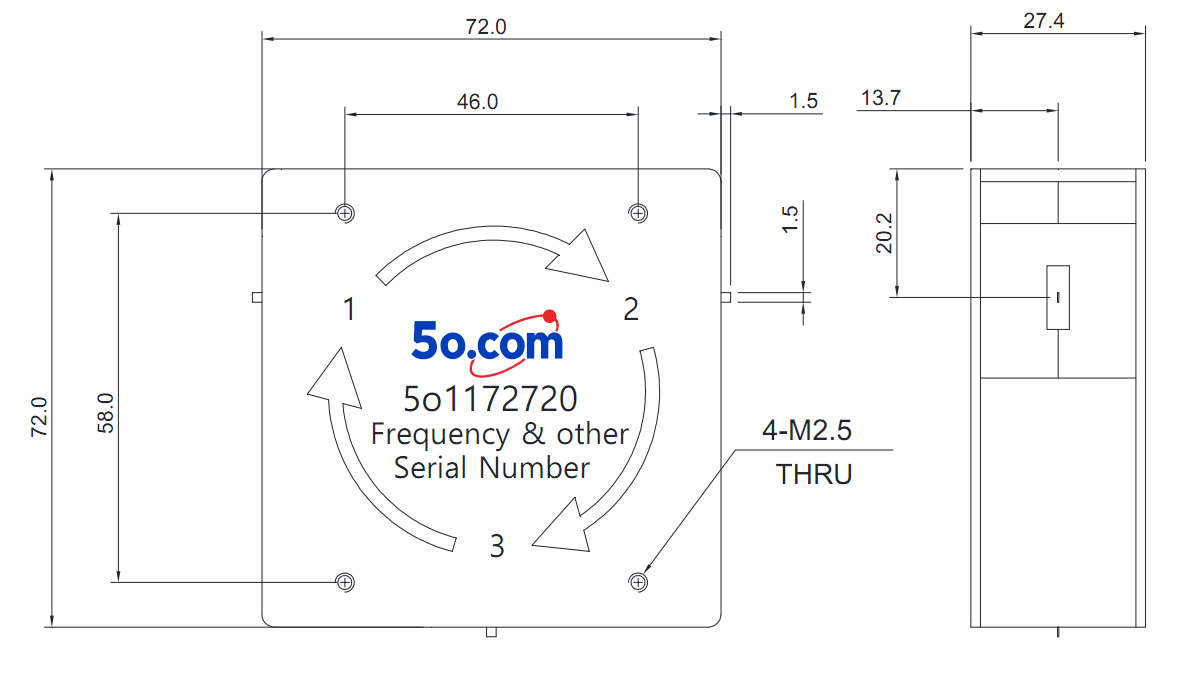

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)

    5o1172720.png Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
