    Drop in Circulator 225 ~ 400MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
      (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1160605225400

    225 ~ 400

    18

    1.3

    0.8

    TAB

    0 ~ +60

    16

    1.4

    1.0

    -40 ~ +85

     Basic Specifications

    Dimension

    60*60*27.5mm

    Impedance

    50Ω

    Forward Power

    160W

    Operating Temperature

    -40 ~ +85℃

    Reverse Power

    160W

    Storage Temperature

    -55 ~ +125℃

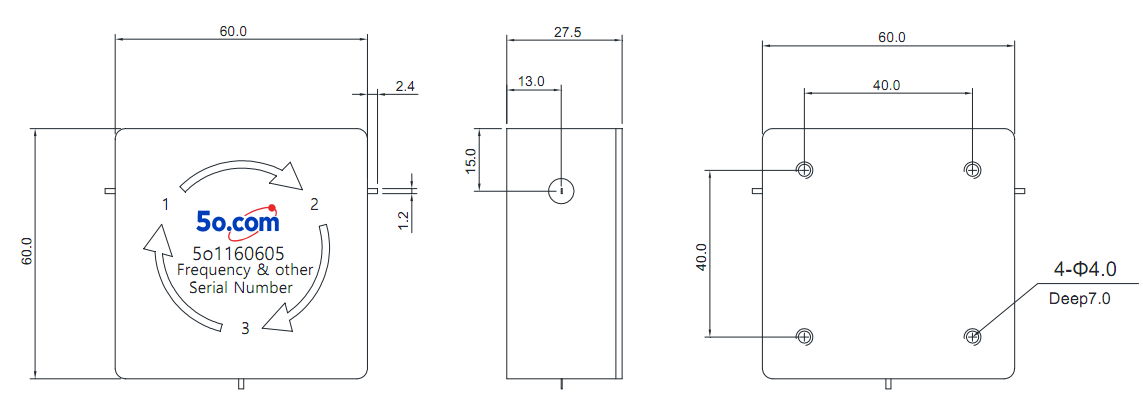

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
