    Drop in Circulator 45 ~ 270MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
          (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o11606004550

    45 ~ 50

    18

    1.3

    1.5

    TAB

    -10 ~ +65

    5o11606004555

    45 ~ 55

    18

    1.3

    1.8

    TAB

    -10 ~ +65

    5o11606005075

    50 ~ 75

    18

    1.3

    1.8

    TAB

    -10 ~ +65

    5o11606005575

    55 ~ 75

    18

    1.3

    1.2

    TAB

    -10 ~ +65

    5o11606006065

    60 ~ 65

    20

    1.25

    1.0

    TAB

    -10 ~ +65

    5o11606006570

    65 ~ 70

    20

    1.25

    1.0

    TAB

    -10 ~ +65

    5o11606006888

    68 ~ 88

    18

    1.3

    1.3

    TAB

    -20 ~ +65

    5o11606007085

    70 ~ 85

    20

    1.25

    0.8

    TAB

    -20 ~ +65

    5o11606007090

    70 ~ 90

    20

    1.25

    1.0

    TAB

    -20 ~ +65

    5o116060080120

    80 ~ 120

    18

    1.3

    1.0

    TAB

    0 ~ +65

    5o116060085135

    85 ~ 135

    18

    1.3

    1.2

    TAB

    -10 ~ +65

    5o116060087108

    87 ~ 108

    20

    1.25

    0.6

    TAB

    -20 ~ +65

    5o116060087108P200

    87 ~ 108

    20

    1.25

    0.6

    TAB

    -20 ~ +65

    5o116060088138

    88 ~ 138

    18

    1.3

    1.0

    TAB

    -10 ~ +65

    5o1160600100130

    100 ~ 130

    20

    1.25

    0.6

    TAB

    -30 ~ +70

    5o1160600100150

    100 ~ 150

    18

    1.3

    1.0

    TAB

    -10 ~ +65

    5o1160600108118

    108 ~ 118

    23

    1.2

    0.5

    TAB

    -30 ~ +70

    5o1160600108118P200

    108 ~ 118

    23

    1.2

    0.5

    TAB

    -30 ~ +70

    5o1160600112156

    112 ~ 156

    20

    1.25

    0.8

    TAB

    -30 ~ +70

    5o1160600118137

    118 ~ 137

    23

    1.2

    0.5

    TAB

    -30 ~ +70

    5o1160600118137P200

    118 ~ 137

    23

    1.2

    0.5

    TAB

    -30 ~ +70

    5o1160600130180

    130 ~ 180

    20

    1.25

    0.6

    TAB

    -30 ~ +70

    5o1160600136174

    136 ~ 174

    22

    1.2

    0.5

    TAB

    -30 ~ +70

    5o1160600136174P200

    136 ~ 174

    22

    1.2

    0.5

    TAB

    -30 ~ +70

    5o1160600148174P150

    148 ~ 174

    25

    1.15

    0.5

    TAB

    -30 ~ +70

    5o1160600150200

    150 ~ 200

    20

    1.25

    0.6

    TAB

    -30 ~ +70

    5o1160600150225

    150 ~ 225

    18

    1.3

    0.9

    TAB

    -30 ~ +70

    5o1160600170200

    170 ~ 200

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o1160600170200P200

    170 ~ 200

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o1160600180220

    180 ~ 220

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o1160600200270

    200 ~ 270

    20

    1.25

    0.7

    TAB

    -30 ~ +70

    Basic Specifications

    Dimension

    60*60*27.5mm

    Impedance

    50Ω

    Forward Power

    200W

    Operating Temperature

    -30 ~ +70℃

    Reverse Power

    200W

    Storage Temperature

    -55 ~ +125℃

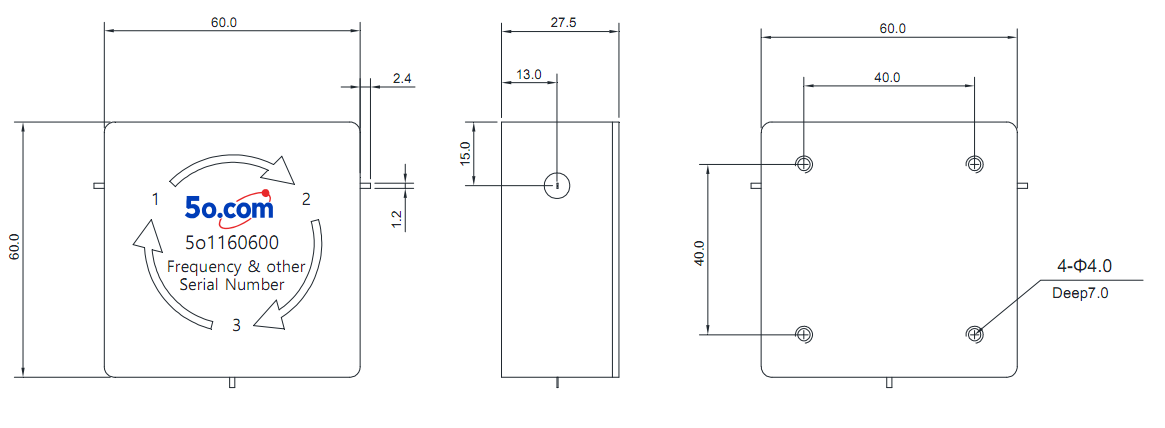

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
