    Coaxial Circulator 700 ~ 2000MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.


    RF Characteristics

    Part Number

    Frequency Range
    (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o1034340700900SK

    700 ~ 900

    20

    1.25

    0.4

    SMA Female

    -30 ~ +70

    5o10343408001000NK

    800 ~ 1000

    22

    1.2

    0.3

    N Female

    -30 ~ +70

    5o10343408501150SJSK

    850 ~ 1150

    18

    1.3

    0.6

    SMA-Male to SMA Female

    -30 ~ +70

    5o1034340860960SK

    860 ~ 960

    23

    1.2

    0.25

    SMA Female

    -30 ~ +70

    5o10343409001200SK

    900 ~ 1200

    20

    1.25

    0.5

    SMA Female

    -30 ~ +70

    5o10343409001300SK

    900 ~ 1300

    18

    1.3

    0.6

    SMA Female

    -30 ~ +70

    5o10343409501415SK

    950 ~ 1415

    18

    1.4

    0.6

    SMA Female

    0 ~ +60

    5o10343409501450SK

    950 ~ 1450

    16

    1.4

    0.6

    SMA Female

    0 ~ +60

    5o10343409601215NK

    960 ~ 1215

    20

    1.25

    0.3

    N Female

    -30 ~ +70

    5o10343409601260SK

    960 ~ 1260

    18

    1.3

    0.3

    SMA Female

    -30 ~ +70

    5o103434010001500SK

    1000 ~ 1500

    16

    1.4

    0.6

    SMA Female

    0 ~ +60

    5o103434012251875SK

    1225 ~ 1875

    16

    1.4

    0.6

    SMA Female

    0 ~ +60

    5o103434012901710SK

    1290 ~ 1710

    20

    1.25

    0.5

    SMA Female

    -40 ~ +85

    5o103434013001740SK

    1300 ~ 1740

    20

    1.25

    0.5

    SMA Female

    -40 ~ +85

    5o103434013001800SK

    1300 ~ 1800

    18

    1.3

    0.5

    SMA Female

    -40 ~ +85

    5o103434013501850SK

    1350 ~ 1850

    18

    1.3

    0.5

    SMA Female

    -40 ~ +85

    Basic Specifications

    Dimension

    34*34*22mm

    Forward Power

    100W

    Reverse Power

    100W

    Connector Type

    SMA(Male/Female), N(Male/Female)

    Storage Temperature

    -55℃~+125℃

    Impedance

    50Ω

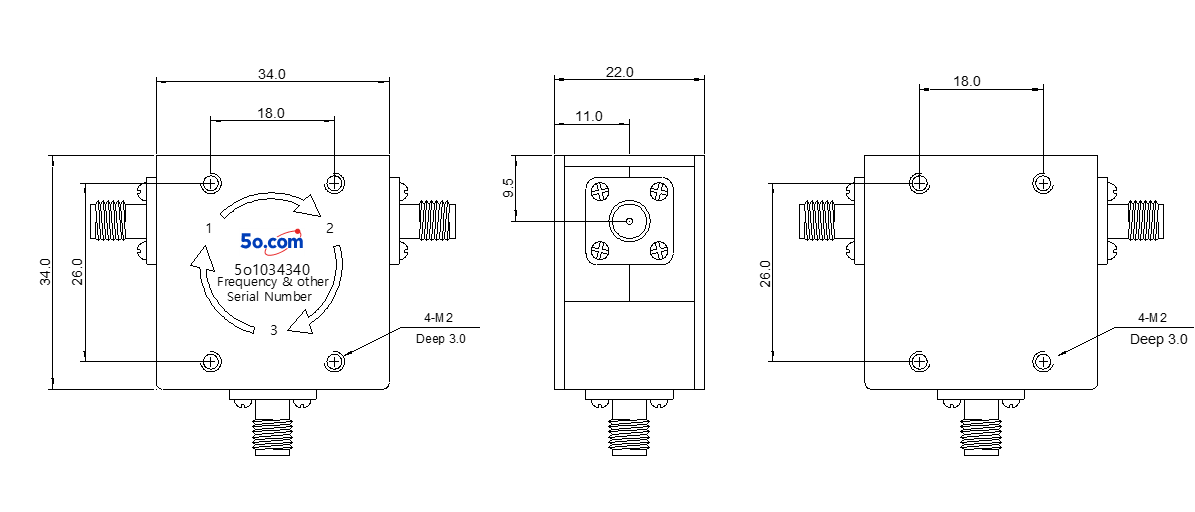

    5o1034340.pngOverall Dimension(mm, Tolerances: ±2% unless otherwise stated.)






















    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.




    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆The connector can be selected according to requirements, Connect type (SMA Male/Female, N Male/ Female, etc.)

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
