    Surface Mount Isolator 2.4 ~ 6.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
       (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    5o0410024962690

    2496 ~ 2690

    21

    1.2

    0.3

    SMT

    5o041003234

    3200 ~ 3400

    21

    1.2

    0.3

    SMT

    5o041003336

    3300 ~ 3600

    20

    1.25

    0.35

    SMT

    5o041003436

    3400 ~ 3600

    21

    1.2

    0.3

    SMT

    5o04100475

    4700 ~ 5000

    21

    1.2

    0.3

    SMT

    5o04100485

    4800 ~ 5000

    21

    1.2

    0.3

    SMT

    5o0410056

    5000 ~ 6000

    18

    1.3

    0.5

    SMT

    5o04100555

    5000 ~ 5500

    20

    1.25

    0.4

    SMT

    5o04100556

    5500 ~ 6000

    20

    1.25

    0.4

    SMT

    5o041005759

    5700 ~ 5900

    21

    1.2

    0.3

    SMT

    Basic Specifications

    Dimension

    Φ9.8*7mm

    Impedance

    50Ω

    Forward Power

    30W

    Operating   Temperature

    -40 ~ +85℃

    Reverse   Power

    10W

    Storage Temperature

    -55 ~+125℃

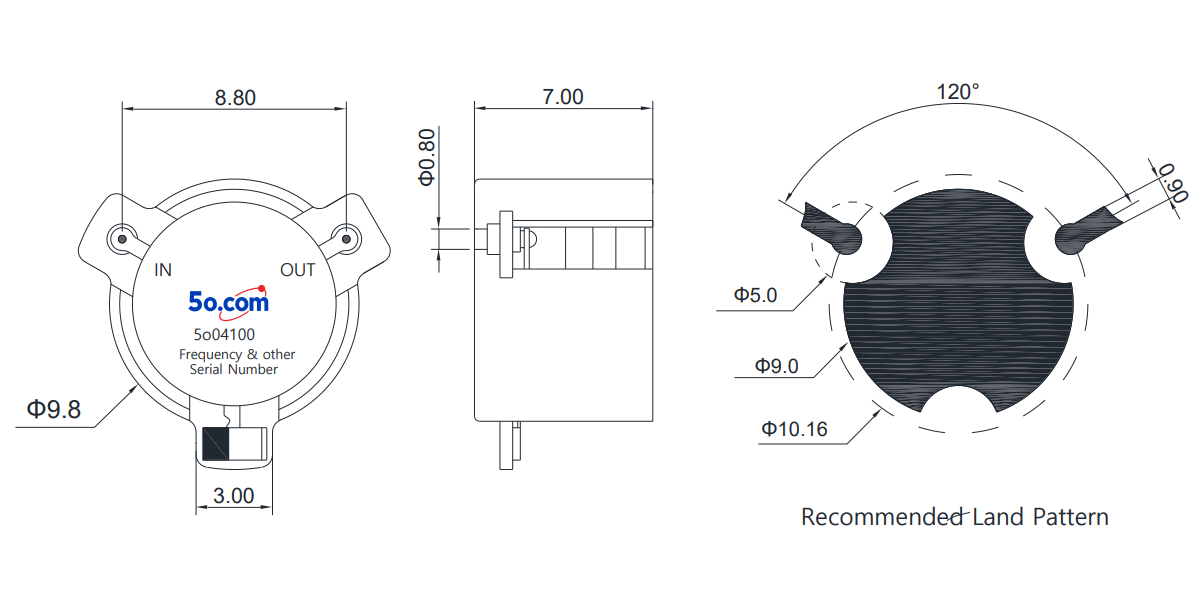

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆When surface mount isolators/circulators use reflow soldering technology, the maximum temperature shall not exceed 260 degrees.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
