    Drop in Isolator 8.0 ~ 12.0GHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range
       (    GHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector Type

    5o018151812

    8.0 ~ 12.0

    18

    1.3

    0.5

    TAB

    Basic Specifications

    Dimension

    8.9*15*7.8mm

    Impedance

    50Ω

    Forward Power

    30W

    Operating Temperature

    -55 ~ +85℃

    Reverse Power

    5W

    Storage Temperature

    -55 ~+125℃

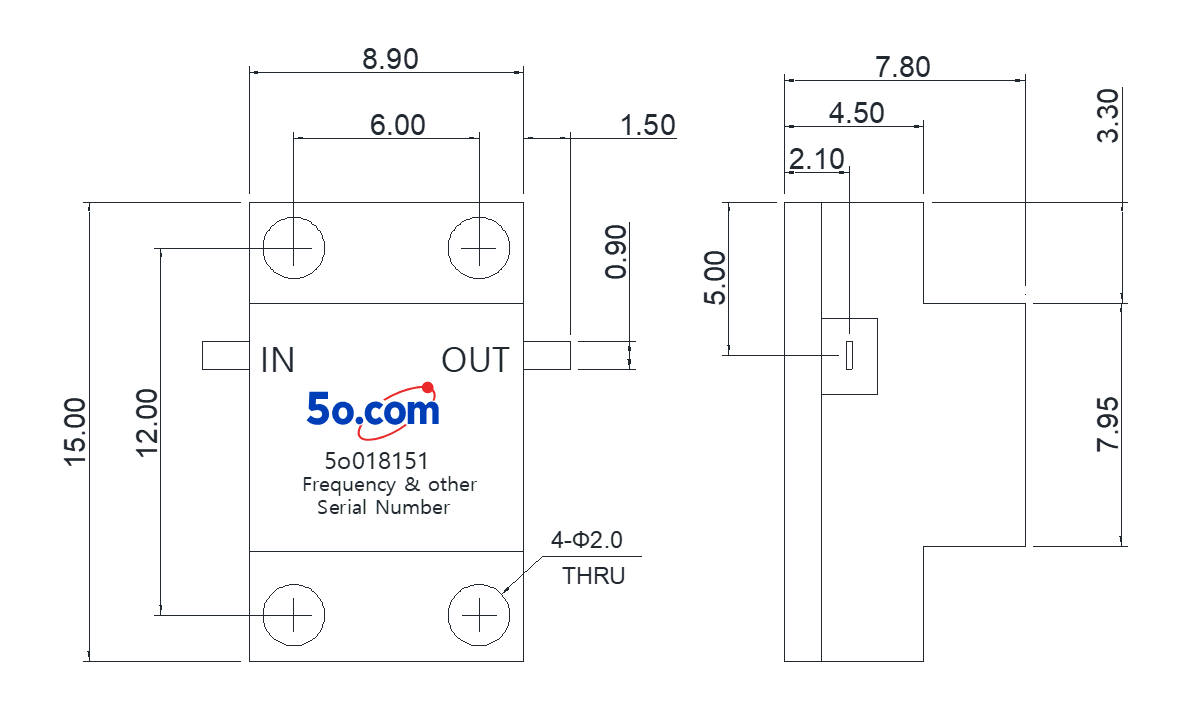

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
