Part Number

Frequency Range
(MHz)

Isolation
Min(dB)

VSWR
Max

Insertion Loss
Max(dB)

Connector

Type

Temp.(°C)

5o01808001012

10 ~ 12

11

1.8

5.0

TAB

+20 ~ +60

5o01808001271314407

12.713 ~ 14.407

11

1.8

5.0

TAB

+20 ~ +60

5o01808001314

13 ~ 14

14

1.5

5.0

TAB

+20 ~ +60

5o01808001820

18 ~ 20

15

1.45

5.0

TAB

+20 ~ +60

5o01808002530

25 ~ 30

12

1.45

3.5

TAB

+10 ~ +60

5o01808002628

26 ~ 28

15

1.45

3.0

TAB

+10 ~ +60

5o0180800285305

28.5 ~ 30.5

16

1.4

2.8

TAB

+10 ~ +60

5o01808003032

30 ~ 32

16

1.4

1.8

TAB

+10 ~ +60

5o01808003035

30 ~ 35

15

1.5

2.5

TAB

+10 ~ +60

5o01808003545

35 ~ 45

16

1.4

3.0

TAB

+10 ~ +60

5o01808004450

44 ~ 50

20

1.25

1.2

TAB

25±5

17

1.35

1.5

+20 ~ +60

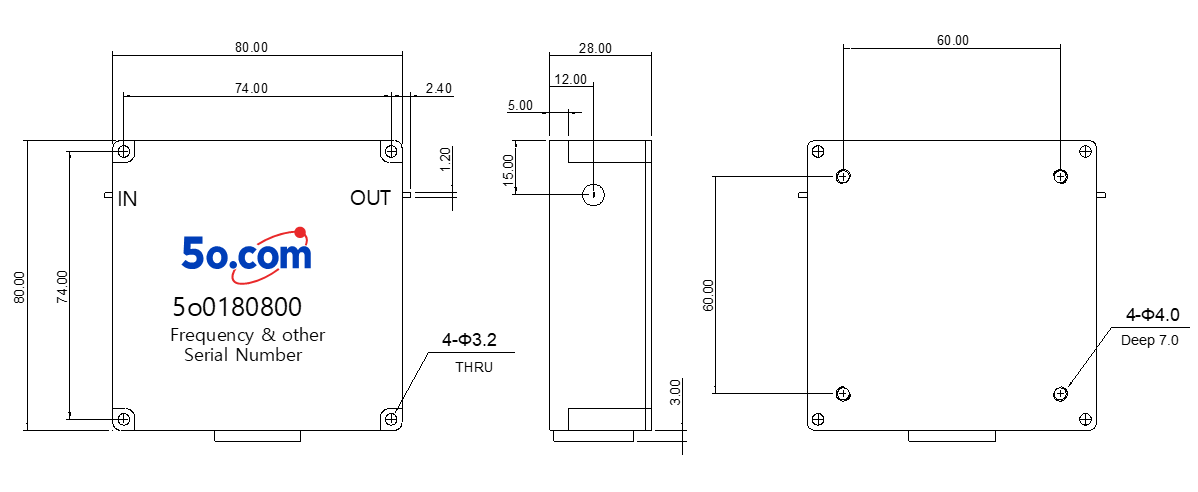

Dimension

80*80*28mm

Forward Power

100W

Reverse Power

100W

Connector Type

TAB

Storage Temperature

-40℃~+125℃

Impedance

50Ω
