    Drop in Isolator 45 ~ 270MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
    (MHz)

    Isolation
    Min(dB)

    VSWR
    Max

    Insertion Loss
    Max(dB)

    Connector

    Type

    Temp.(°C)

    5o01607504550

    45 ~ 50

    18

    1.3

    1.5

    TAB

    -10 ~ +65

    5o01607504555

    45 ~ 55

    18

    1.3

    1.8

    TAB

    -10 ~ +65

    5o01607505075

    50 ~ 75

    18

    1.3

    1.8

    TAB

    -10 ~ +65

    5o01607505575

    55 ~ 75

    18

    1.3

    1.2

    TAB

    -10 ~ +65

    5o01607506065

    60 ~ 65

    20

    1.25

    1

    TAB

    -10 ~ +65

    5o01607506570

    65 ~ 70

    20

    1.25

    1

    TAB

    -10 ~ +65

    5o01607506888

    68 ~ 88

    18

    1.3

    1.3

    TAB

    -20 ~ +65

    5o01607507085

    70 ~ 85

    20

    1.25

    0.8

    TAB

    -20 ~ +65

    5o01607507090

    70 ~ 90

    20

    1.25

    1

    TAB

    -20 ~ +65

    5o016075080120

    80 ~ 120

    18

    1.3

    1

    TAB

    0 ~ +65

    5o016075085135

    85 ~ 135

    18

    1.3

    1.2

    TAB

    -10 ~ +65

    5o016075087108

    87 ~ 108

    20

    1.25

    0.6

    TAB

    -20 ~ +65

    5o016075087108P200

    87 ~ 108

    20

    1.25

    0.6

    TAB

    -20 ~ +65

    5o016075088138

    88 ~ 138

    18

    1.3

    1

    TAB

    -10 ~ +65

    5o0160750100130

    100 ~ 130

    20

    1.25

    0.6

    TAB

    -30 ~ +70

    5o0160750100150

    100 ~ 150

    18

    1.3

    1

    TAB

    -10 ~ +65

    5o0160750108118

    108 ~ 118

    23

    1.2

    0.5

    TAB

    -30 ~ +70

    5o0160750108118P200

    108 ~ 118

    23

    1.2

    0.5

    TAB

    -30 ~ +70

    5o0160750112156

    112 ~ 156

    20

    1.25

    0.8

    TAB

    -30 ~ +70

    5o0160750118137

    118 ~ 137

    23

    1.2

    0.5

    TAB

    -30 ~ +70

    5o0160750118137P200

    118 ~ 137

    23

    1.2

    0.5

    TAB

    -30 ~ +70

    5o0160750130180

    130 ~ 180

    20

    1.25

    0.6

    TAB

    -30 ~ +70

    5o0160750136174

    136 ~ 174

    22

    1.2

    0.5

    TAB

    -30 ~ +70

    5o0160750136174P200

    136 ~ 174

    22

    1.2

    0.5

    TAB

    -30 ~ +70

    5o0160750148174P150

    148 ~ 174

    25

    1.15

    0.5

    TAB

    -30 ~ +70

    5o0160750150200

    150 ~ 200

    20

    1.25

    0.6

    TAB

    -30 ~ +70

    5o0160750150225

    150 ~ 225

    18

    1.3

    0.9

    TAB

    -30 ~ +70

    5o0160750170200

    170 ~ 200

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o0160750170200P200

    170 ~ 200

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o0160750180220

    180 ~ 220

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o0160750200270

    200 ~ 270

    20

    1.25

    0.7

    TAB

    -30 ~ +70

    Basic Specifications

    Dimension

    60*75*28mm

    Forward Power

    100W

    Reverse Power

    100W

    Connector Type

    TAB

    Storage Temperature

    -40℃~+125℃

    Impedance

    50Ω

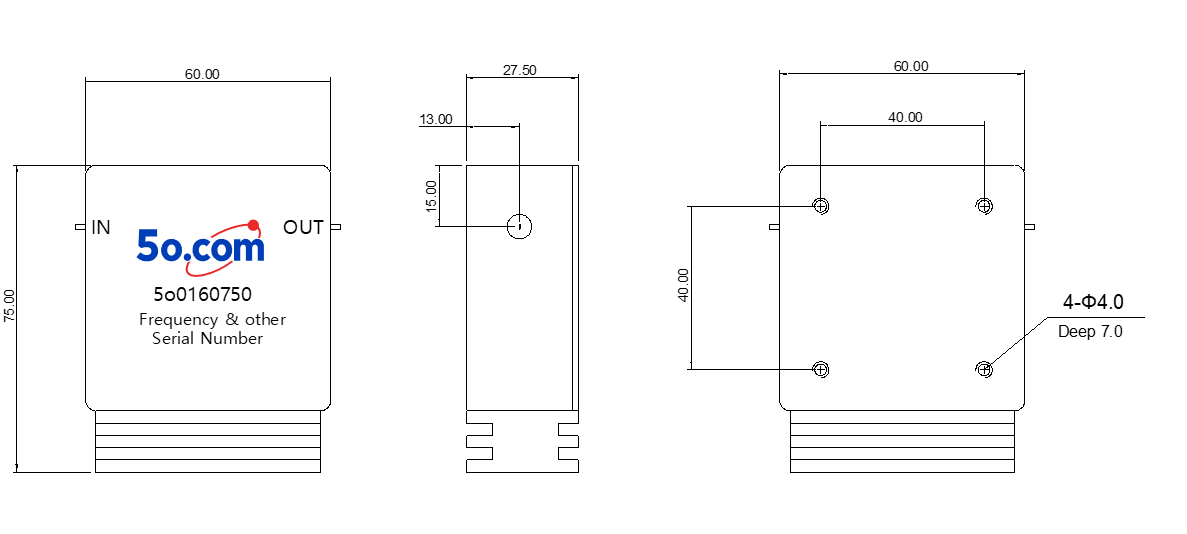

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
