    Drop in Isolator 300 ~ 1500MHz

     Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
       (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0153560300350

    300 ~ 350

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o0153560350400

    350 ~ 400

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o0153560400500

    400 ~ 500

    20

    1.25

    0.4

    TAB

    -30 ~ +70

    5o0153560450500

    450 ~ 512

    23

    1.2

    0.3

    TAB

    -30 ~ +70

    5o0153560500590

    500 ~ 590

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o0153560590710

    590 ~ 710

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o0153560700900

    700 ~ 900

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o01535608001000

    800 ~ 1000

    23

    1.2

    0.25

    TAB

    -40 ~ +85

    5o01535609001200

    900 ~ 1200

    23

    1.2

    0.3

    TAB

    0 ~ +65

    5o01535609601215

    960 ~ 1215

    23

    1.2

    0.3

    TAB

    0 ~ +65

    5o015356012001400

    1200 ~ 1400

    25

    1.15

    0.2

    TAB

    0 ~ +65

    Basic Specifications

    Dimension

    53*56*20mm

    Forward Power

    500W

    Reverse Power

    30W

    Connector Type

    TAB

    Storage Temperature

    -40℃~+125℃

    Impedance

    50Ω

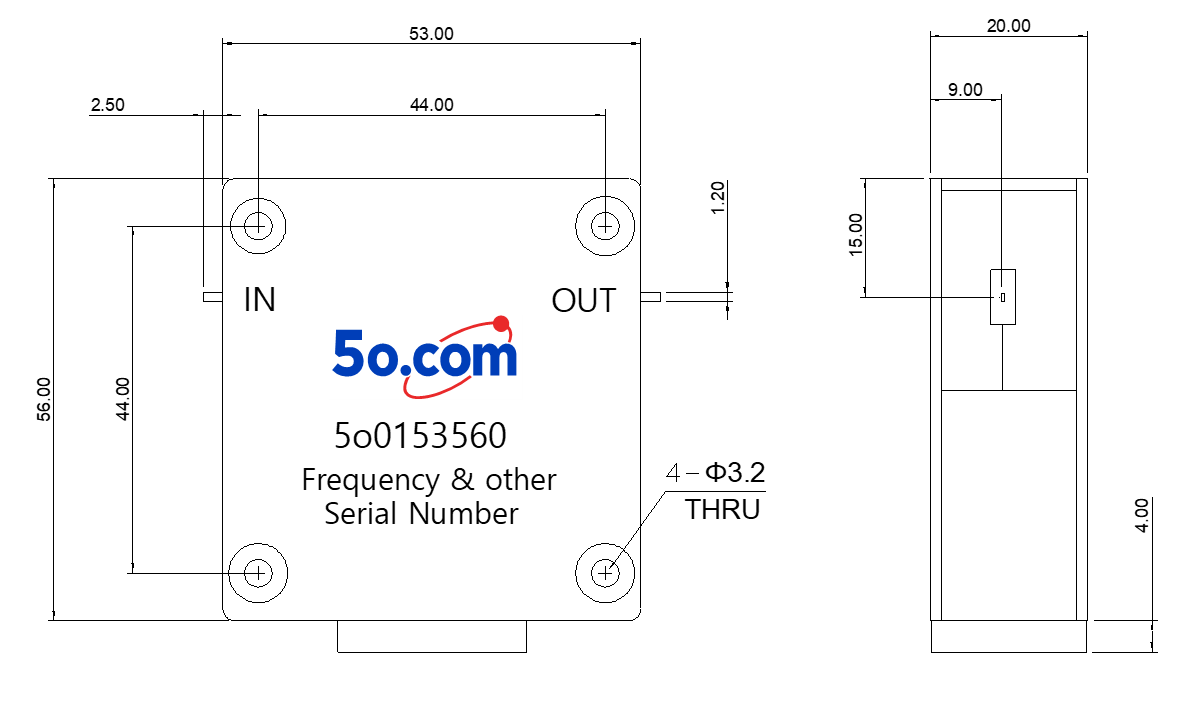

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
