    Drop in Isolator 700 ~ 3100MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.

    RF Characteristics

    Part Number

    Frequency Range
       (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0132320700900

    700 ~ 900

    20

    1.25

    0.5

    TAB

    -30 ~ +70

    5o0132320800900

    800 ~ 900

    20

    1.25

    0.4

    TAB

    -30 ~ +70

    5o01323209601215

    960 ~ 1215

    20

    1.25

    0.4

    TAB

    -30 ~ +70

    5o013232016002000

    1600 ~ 2000

    18

    1.3

    0.6

    TAB

    -20 ~ +65

    5o013232018002200

    1800 ~ 2200

    18

    1.3

    0.5

    TAB

    -30 ~ +70

    5o013232020002400

    2000 ~ 2400

    18

    1.3

    0.5

    TAB

    -40 ~ +70

    5o013232024002500

    2400 ~ 2500

    23

    1.15

    0.2

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    32*32*11mm

    Impedance

    50Ω

    Forward Power

    200W

    Connector   Type

    TAB

    Reverse Power

    30W

    Storage Temperature

    -55~+125℃

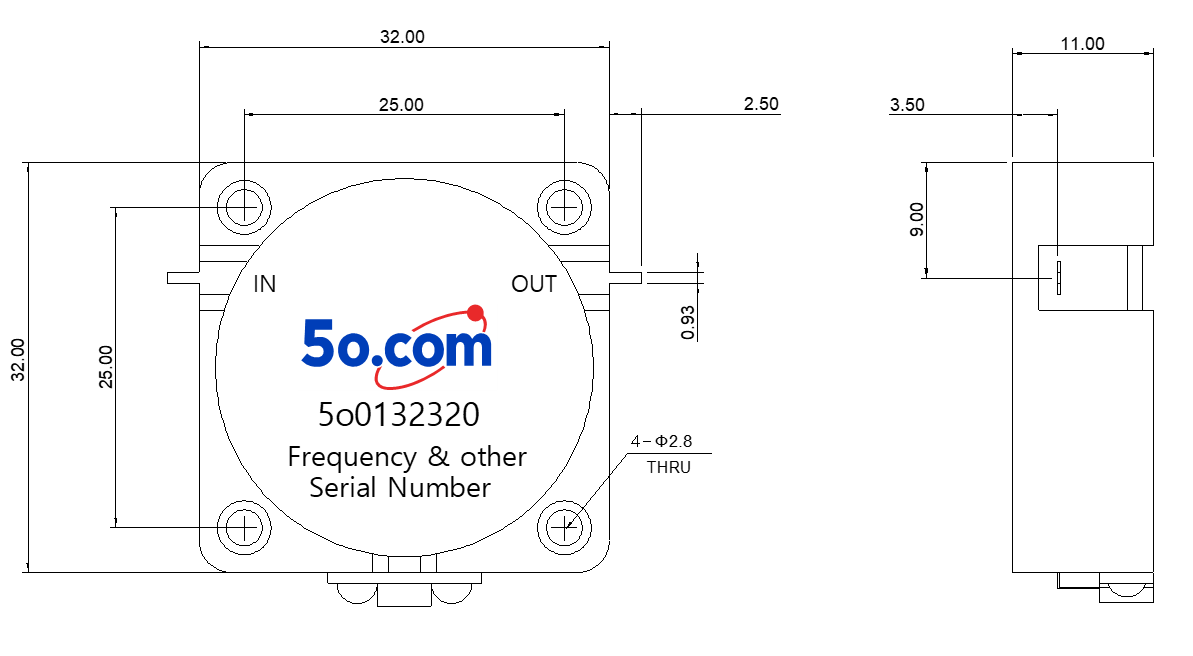

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
