    Drop in Isolator 400 ~ 3000MHz

    Application

    ▶RF power amplifier protection.

    ▶Digital, Satellite, Mobile Communication.

    ▶Medical, Communication, Security.

    ▶Military, Space and Commercial applications.



    RF Characteristics

    Part Number

    Frequency Range
       (MHz)

    Isolation
      Min(dB)

    VSWR
      Max

    Insertion Loss
      Max(dB)

    Connector

    Type

    Temp.(°C)

    5o0120270400420

    400 ~ 420

    16

    1.4

    0.7

    TAB

    -40 ~ +85

    5o0120270430450

    430 ~ 450

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o0120270450470

    450 ~ 470

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o0120270470490

    470 ~ 490

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o0120270490510

    490 ~ 510

    20

    1.25

    0.5

    TAB

    -40 ~ +85

    5o0120270700800

    700 ~ 800

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o0120270825865

    825 ~ 865

    20

    1.25

    0.35

    TAB

    -40 ~ +85

    5o0120270860960

    860 ~ 960

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o0120270869894

    869 ~ 894

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o0120270880960

    880 ~ 960

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o0120270902928

    902 ~ 928

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o0120270925960

    925 ~ 960

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o012027010001200

    1000 ~ 1200

    20

    1.25

    0.4

    TAB

    -40 ~ +85

    5o012027014501550

    1450 ~ 1550

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o012027017102170

    1710 ~ 2170

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o012027017151805

    1715 ~ 1805

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o012027018051880

    1805 ~ 1880

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o012027019201990

    1920 ~ 1990

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o012027021102170

    2110 ~ 2170

    25

    1.15

    0.25

    TAB

    -40 ~ +85

    5o012027020002700

    2000 ~ 2700

    18

    1.3

    0.5

    TAB

    -40 ~ +85

    5o012027022002300

    2200 ~ 2300

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o012027024002500

    2400 ~ 2500

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o012027024962690

    2496 ~ 2690

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    5o012027025002600

    2500 ~ 2600

    23

    1.2

    0.3

    TAB

    -40 ~ +85

    Basic Specifications

    Dimension

    20*27.5*10.6mm

    Forward Power

    100W

    Reverse Power

    100W

    Connector Type

    TAB

    Storage Temperature

    -40℃~+125℃

    Impedance

    50Ω

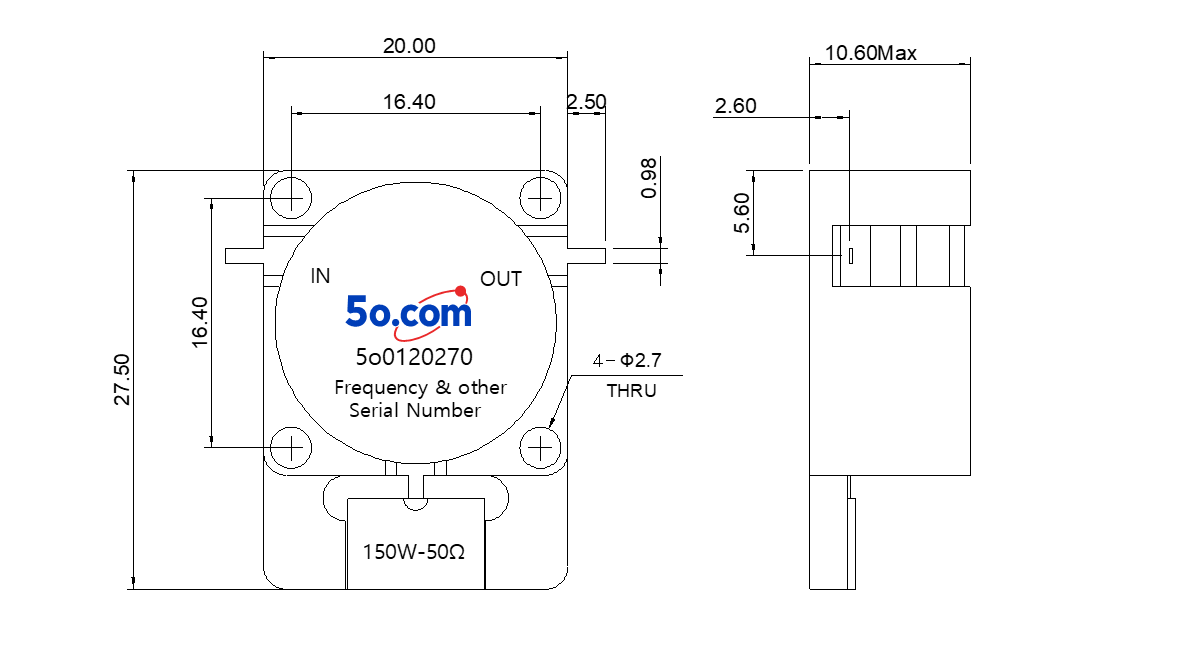

    Overall Dimension(mm, Tolerances: ±2% unless otherwise stated.)


    Instructions

    ◆It can be dual junction or multiple for high isolation.

    ◆Installing the embedded isolator/circulator, please use stainless steel or brass screws.

    ◆Only some common frequencies in the table can be produced according to the user's requirements.

    ◆It supports a one-year standard warranty.
